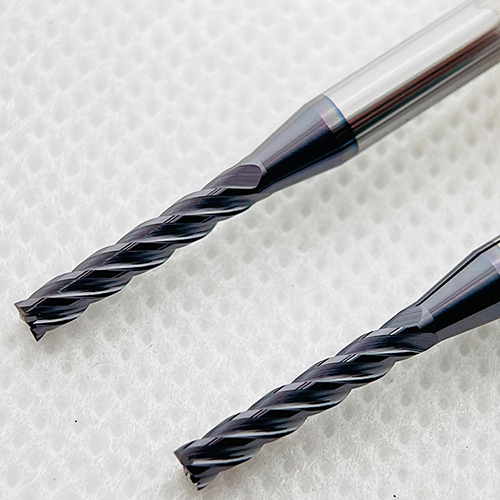

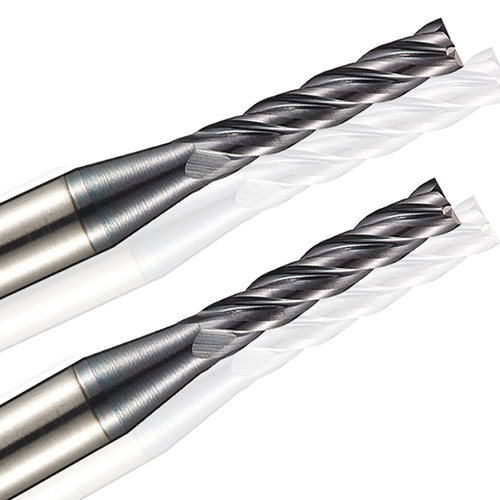

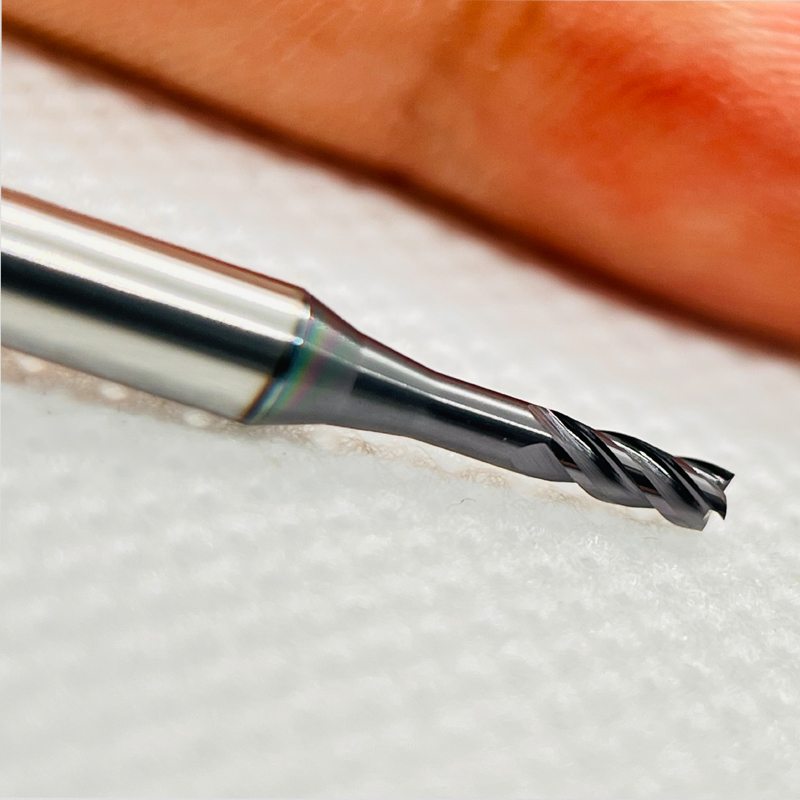

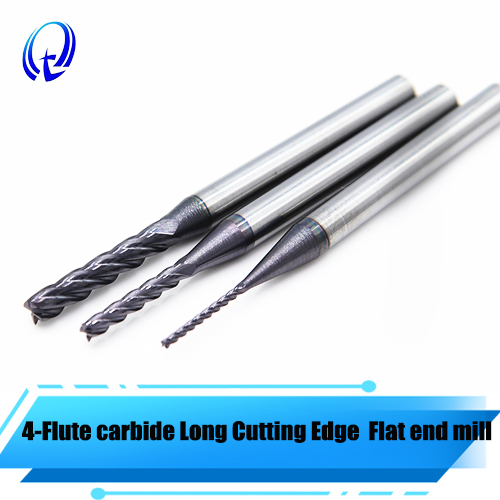

4 Flute Solid Carbide Long cutting edge Flat End Mill For Steel Milling Cutter
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Flute: 4-Flute Long cutting edge
Coating: TiSiN
HRC: HRC55
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Specifications
| Tool Num. | D1 Cutter Diameter | L2 Length of Cut | D2 Shank Diameter | L1 Over All Length |
| F-φ1*4*4*50-4T-55 | 1 | 4 | 4 | 50 |
| F-φ1*5*4*50-4T-55 | 1 | 5 | 4 | 50 |
| F-φ1*6*4*50-4T-55 | 1 | 6 | 4 | 50 |
| F-φ1*7*4*50-4T-55 | 1 | 7 | 4 | 50 |
| F-φ1*8*4*50-4T-55 | 1 | 8 | 4 | 50 |
| F-φ1*10*4*50-4T-55 | 1 | 10 | 4 | 50 |
| F-φ1.2*4*4*50-4T-55 | 1.2 | 4 | 4 | 50 |
| F-φ1.2*5*4*50-4T-55 | 1.2 | 5 | 4 | 50 |
| F-φ1.2*6*4*50-4T-55 | 1.2 | 6 | 4 | 50 |
| F-φ1.2*8*4*50-4T-55 | 1.2 | 8 | 4 | 50 |
| F-φ1.2*10*4*50-4T-55 | 1.2 | 10 | 4 | 50 |
| F-φ1.3*5*4*50-4T-55 | 1.3 | 5 | 4 | 50 |
| F-φ1.3*6*4*50-4T-55 | 1.3 | 6 | 4 | 50 |
| F-φ1.3*8*4*50-4T-55 | 1.3 | 8 | 4 | 50 |
| F-φ1.4*6*4*50-4T-55 | 1.4 | 6 | 4 | 50 |
| F-φ1.4*8*4*50-4T-55 | 1.4 | 8 | 4 | 50 |
| F-φ1.4*10*4*50-4T-55 | 1.4 | 10 | 4 | 50 |
| F-φ1.5*5*4*50-4T-55 | 1.5 | 5 | 4 | 50 |
| F-φ1.5*6*4*50-4T-55 | 1.5 | 6 | 4 | 50 |
| F-φ1.5*7*4*50-4T-55 | 1.5 | 7 | 4 | 50 |
| F-φ1.5*8*4*50-4T-55 | 1.5 | 8 | 4 | 50 |
| F-φ1.5*10*4*50-4T-55 | 1.5 | 10 | 4 | 50 |
| F-φ1.5*12*4*50-4T-55 | 1.5 | 12 | 4 | 50 |
| F-φ1.6*6*4*50-4T-55 | 1.6 | 6 | 4 | 50 |
| F-φ1.6*8*4*50-4T-55 | 1.6 | 8 | 4 | 50 |
| F-φ1.6*10*4*50-4T-55 | 1.6 | 10 | 4 | 50 |
| F-φ1.7*6*4*50-4T-55 | 1.7 | 6 | 4 | 50 |
| F-φ1.8*6*4*50-4T-55 | 1.8 | 6 | 4 | 50 |
| F-φ1.8*8*4*50-4T-55 | 1.8 | 8 | 4 | 50 |
| F-φ1.8*10*4*50-4T-55 | 1.8 | 10 | 4 | 50 |
| F-φ2*8*4*50-4T-55 | 2 | 8 | 4 | 50 |
| F-φ2*10*4*50-4T-55 | 2 | 10 | 4 | 50 |
| F-φ2*12*4*50-4T-55 | 2 | 12 | 4 | 50 |
| F-φ2.5*10*4*50-4T-55 | 2.5 | 10 | 4 | 50 |
| F-φ2.5*12*4*50-4T-55 | 2.5 | 12 | 4 | 50 |
| F-φ2.5*14*4*50-4T-55 | 2.5 | 14 | 4 | 50 |
| F-φ3*10*4*50-4T-55 | 3 | 10 | 4 | 50 |
| F-φ3*12*4*50-4T-55 | 3 | 12 | 4 | 50 |
| F-φ3*14*4*50-4T-55 | 3 | 14 | 4 | 50 |
| F-φ3*15*4*50-4T-55 | 3 | 15 | 4 | 50 |
| F-φ3*16*4*50-4T-55 | 3 | 16 | 4 | 50 |
| F-φ4*12*4*50-4T-55 | 4 | 12 | 4 | 50 |
| F-φ4*15*4*50-4T-55 | 4 | 15 | 4 | 50 |
| F-φ4*16*4*50-4T-55 | 4 | 16 | 4 | 50 |
| F-φ4*20**-4T-55 | 4 | 20 | 4 | 50 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
