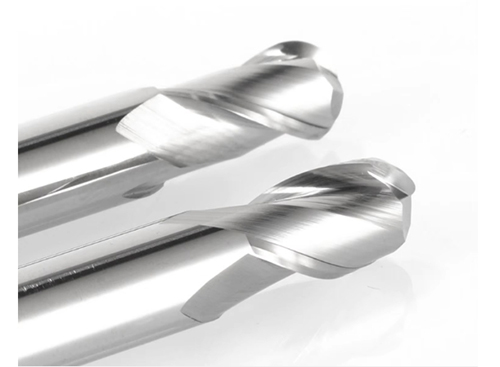

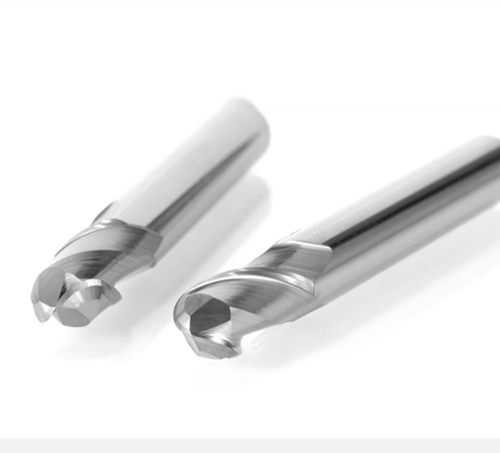

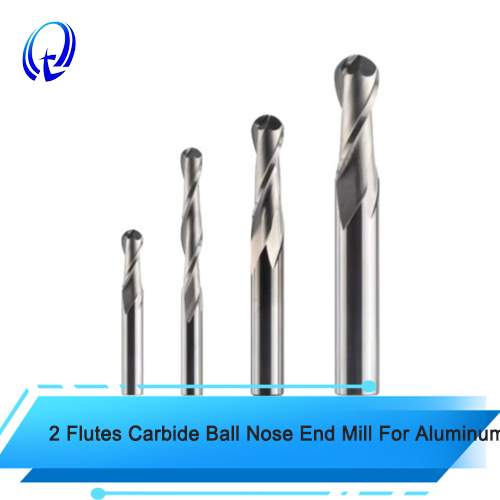

2 Flutes Carbide Ball Nose End Mill for Aluminum Milling Cutter
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute Ball Nose end mill
Coating: Nose
HRC: HRC55
Suitable For: Aluminum
Products Features
1. Sharp Cutting Edges, Smooth Chip Evacuation: Adopts a two-flute design with sharp cutting edges, ideal for high-speed aluminum machining, effectively improving processing efficiency and ensuring rapid chip removal to prevent sticking.
2. High-Hardness Tungsten Steel Material: Made with domestic renowned high-quality micro-grain tungsten steel substrate, possessing high strength and wear resistance, extending tool life, suitable for continuous high-intensity machining. Domestic raw materials offer a high cost-performance ratio, helping you reduce costs and increase efficiency.
3. Ball Nose Design for Complex Surface Machining: The ball nose structure is suitable for machining complex workpieces such as three-dimensional surfaces and mold cavities, achieving higher precision contours and surface finishes.
4. Mirror Coating for Improved Surface Quality: The surface is treated with a heat-resistant coating or mirror polishing, reducing cutting resistance and improving the surface finish of the workpiece.
5. Specifically Designed for Aluminum and Soft Metals: Optimized geometric design specifically developed for aluminum and non-ferrous metal materials, preventing built-up edge (BUE) formation and ensuring cutting stability.
Specifications
| Tool Num. | 1 Cutter Diameter | 2 Shank diameter | L2 Length of Cut | L1 Over All Length |
| R0.5*2*D4*50L-2F-55-Alu | R0.5 | 4 | 2 | 50 |
| R0.75*3*D4*50L-2F-55-Alu | R0.75 | 4 | 3 | 50 |
| R1*4*D4*50L-2F-55-Alu | R1 | 4 | 4 | 50 |
| R1.5*6*D3*50L-2F-55-Alu | R1.5 | 3 | 6 | 50 |
| R1.5*6*D4*50L-2F-55-Alu | R1.5 | 4 | 6 | 50 |
| R2*8*D4*50L-2F-55-Alu | R2 | 4 | 8 | 50 |
| R3*12*D6*50L-2F-55-Alu | R3 | 6 | 12 | 50 |
| R4*16*D8*60L-2F-55-Alu | R4 | 8 | 16 | 60 |
| R5*20*D10*75L-2F-55-Alu | R5 | 10 | 20 | 75 |
| R6*24*D12*75L-2F-55-Alu | R6 | 12 | 24 | 75 |
| R0.5*2*D4*75L-2F-55-Alu | R0.5 | 4 | 2 | 75 |
| R0.5*2*D4*100L-2F-55-Alu | R0.5 | 4 | 2 | 100 |
| R0.75*3*D4*75L-2F-55-Alu | R0.75 | 4 | 3 | 75 |
| R0.75*3*D4*100L-2F-55-Alu | R0.75 | 4 | 3 | 100 |
| R1*4*D4*75L-2F-55-Alu | R1 | 4 | 4 | 75 |
| R1*4*D4*100L-2F-55-Alu | R1 | 4 | 4 | 100 |
| R1.5*6*D3*75L-2F-55-Alu | R1.5 | 3 | 6 | 75 |
| R1.5*6*D3*100L-2F-55-Alu | R1.5 | 3 | 6 | 100 |
| R1.5*6*D4*75L-2F-55-Alu | R1.5 | 4 | 6 | 75 |
| R1.5*6*D4*100L-2F-55-Alu | R1.5 | 4 | 6 | 100 |
| R2*8*D4*75L-2F-55-Alu | R2 | 4 | 8 | 75 |
| R2*8*D4*100L-2F-55-Alu | R2 | 4 | 8 | 100 |
| R2.5*12*D6*75L-2F-55-Alu | R2.5 | 6 | 12 | 75 |
| R2.5*12*D6*100L-2F-55-Alu | R2.5 | 6 | 12 | 100 |
| R3*12*D6*75L-2F-55-Alu | R3 | 6 | 12 | 75 |
| R3*12*D6*100L-2F-55-Alu | R3 | 6 | 12 | 100 |
| R4*16*D8*75L-2F-55-Alu | R4 | 8 | 16 | 75 |
| R4*16*D8*100L-2F-55-Alu | R4 | 8 | 16 | 100 |
| R5*20*D10*100L-2F-55-Alu | R5 | 10 | 20 | 100 |
| R6*24*D12*100L-2F-55-Alu | R6 | 12 | 24 | 100 |
| R3*12*D6*150L-2F-55-Alu | R3 | 6 | 12 | 150 |
| R4*16*D8*150L-2F-55-Alu | R4 | 8 | 16 | 150 |
| R5*20*D10*150L-2F-55-Alu | R5 | 10 | 20 | 150 |
| R6*24*D12*150L-2F-55-Alu | R6 | 12 | 24 | 150 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
