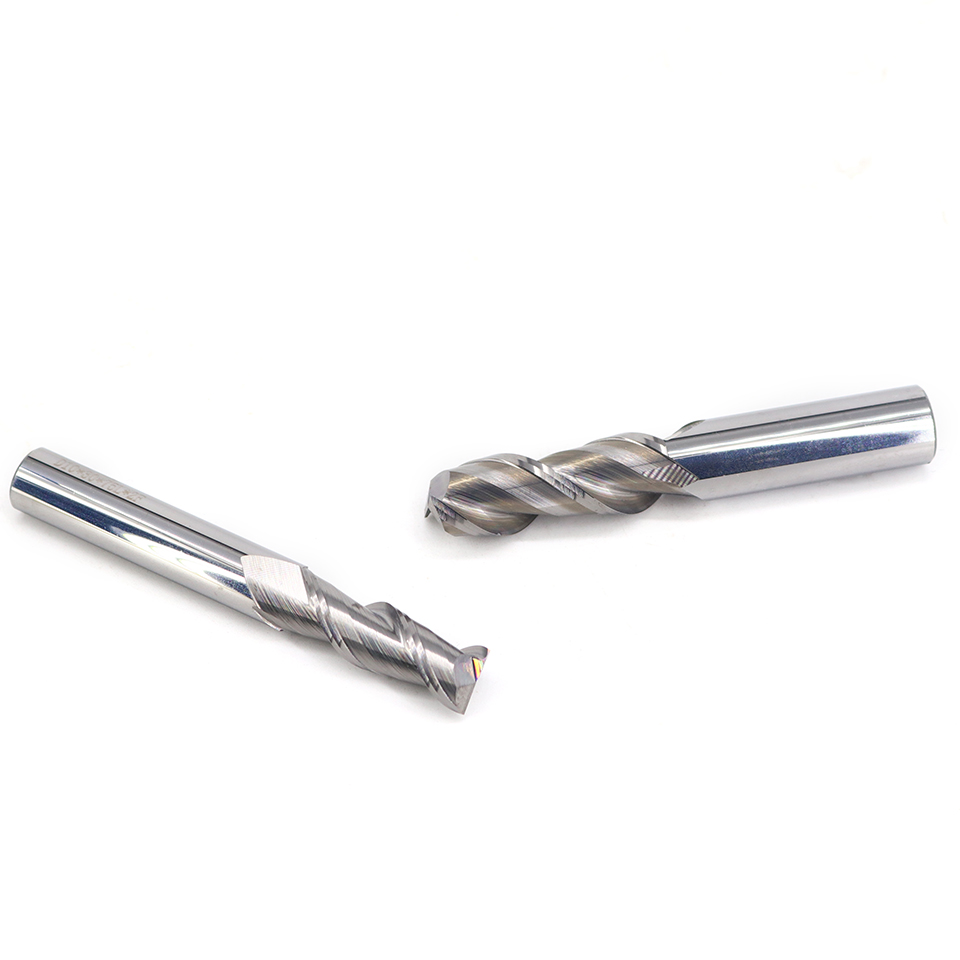

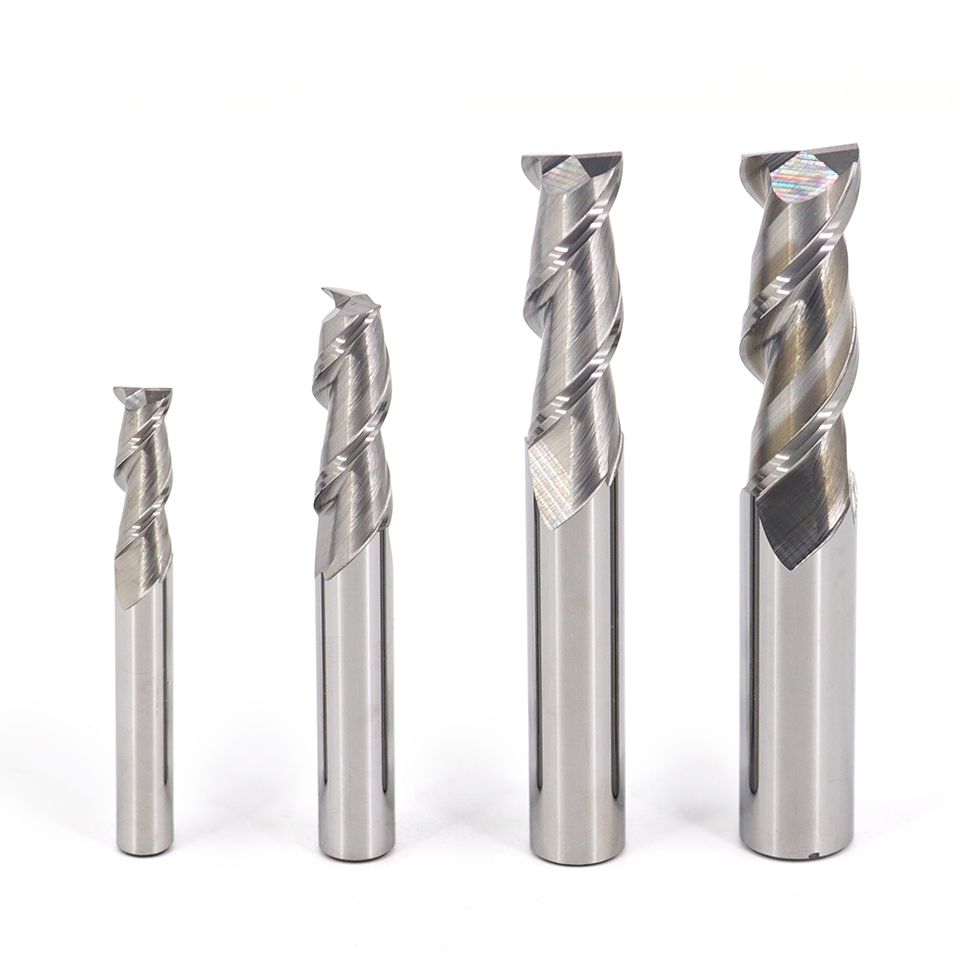

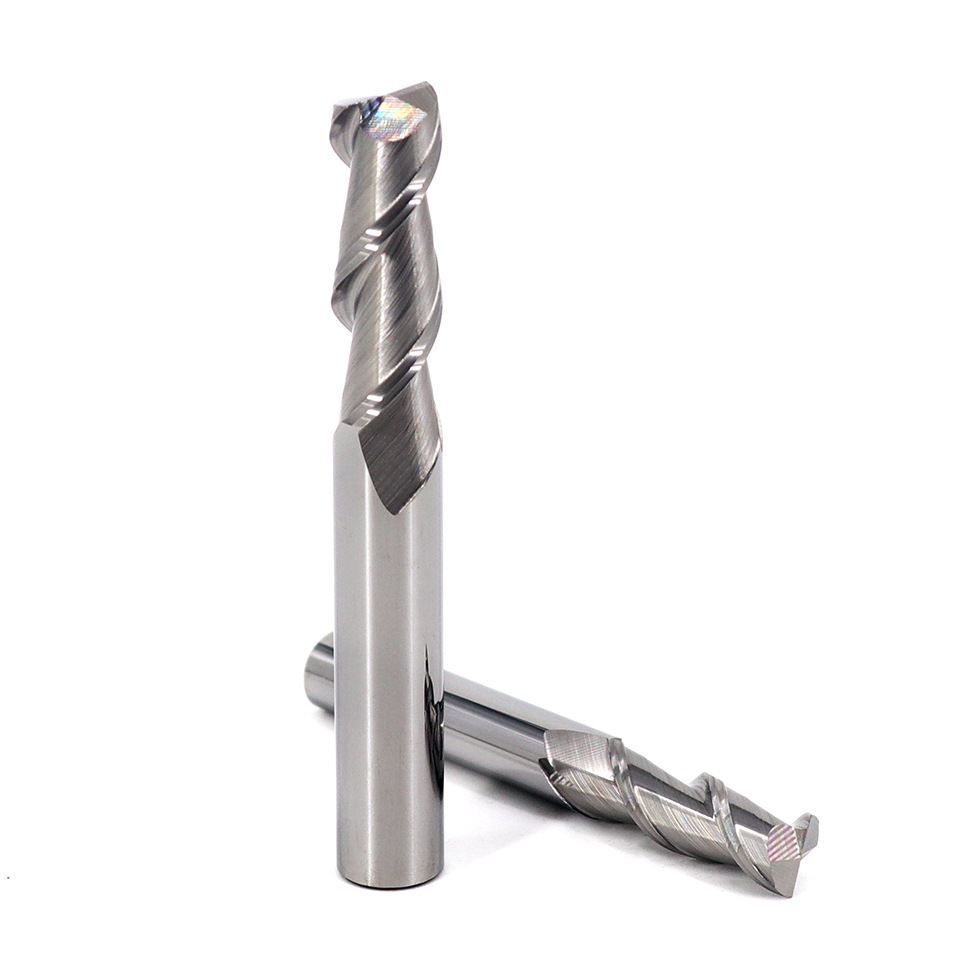

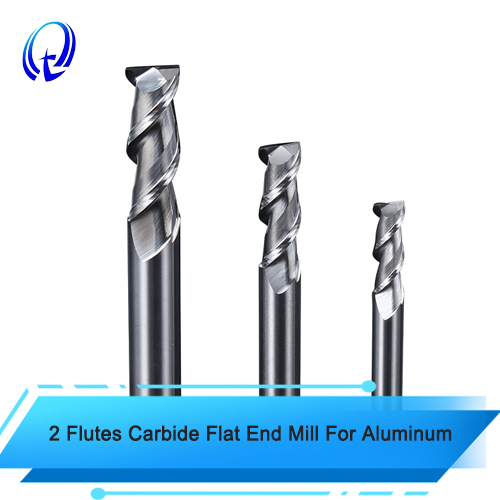

2 Flutes Carbide Flat End Mill for Aluminum Milling Cutter
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute Flat end mill
Coating: None
HRC: HRC55
Suitable For: Aluminum
Products Features
1. High Sharpness Design: Adopts a two-flute structure with sharp cutting edges and smooth chip evacuation, especially suitable for machining soft materials like aluminum, improving processing efficiency.
2. Ultra-Fine Grain Tungsten Steel Material: Made with domestic high-quality ultra-fine grain tungsten steel, possessing excellent wear resistance and fracture resistance, extending tool life. Domestic raw materials offer a high cost-performance ratio, helping you reduce costs and increase efficiency.
3. Mirror-Polished Flute Design: The flutes are treated with a mirror-polishing process, effectively reducing cutting resistance and chip adhesion, improving surface finish.
4. High Chip Evacuation Performance: The large helix angle design, combined with the two-flute structure, achieves rapid chip removal during high-speed cutting, preventing chip accumulation from damaging the tool.
el, alloy steel, and mold steel, meeting diverse machining needs.
Specifications
| Tool Num. | 1 Cutter Diameter | 2 Shank diameter | L2 Length of Cut | L1 Over All Length |
| F-1*2*D4*50L-2F-55-Alu | 1 | 4 | 2 | 50 |
| F-1*3*D4*50L-2F-55-Alu | 1 | 4 | 3 | 50 |
| F-1.5*3*D4*50L-2F-55-Alu | 1.5 | 4 | 3 | 50 |
| F-1.5*4.5*D4*50L-2F-55-Alu | 1.5 | 4 | 4.5 | 50 |
| F-2*4*D4*50L-2F-55-Alu | 2 | 4 | 4 | 50 |
| F-2*6*D4*50L-2F-55-Alu | 2 | 4 | 6 | 50 |
| F-2.5*5*D4*50L-2F-55-Alu | 2.5 | 4 | 5 | 50 |
| F-2.5*7.5*D4*50L-2F-55-Alu | 2.5 | 4 | 7.5 | 50 |
| F-3*6*D4*50L-2F-55-Alu | 3 | 4 | 6 | 50 |
| F-3*9*D4*50L-2F-55-Alu | 3 | 4 | 9 | 50 |
| F-4*8*D4*50L-2F-55-Alu | 4 | 4 | 8 | 50 |
| F-4*10*D4*50L-2F-55-Alu | 4 | 4 | 10 | 50 |
| F-4*12*D4*50L-2F-55-Alu | 4 | 4 | 12 | 50 |
| F-5*15*D6*50L-2F-55-Alu | 5 | 6 | 15 | 50 |
| F-6*12*D6*50L-2F-55-Alu | 6 | 6 | 12 | 50 |
| F-6*18*D6*50L-2F-55-Alu | 6 | 6 | 18 | 50 |
| F-8*20*D8*60L-2F-55-Alu | 8 | 8 | 20 | 60 |
| F-10*25*D10*75L-2F-55-Alu | 10 | 10 | 25 | 75 |
| F-10*30*D10*75L-2F-55-Alu | 10 | 10 | 30 | 75 |
| F-12*30*D12*75L-2F-55-Alu | 12 | 12 | 30 | 75 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
