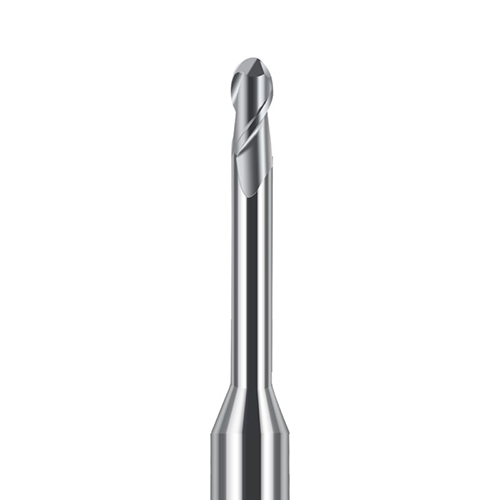

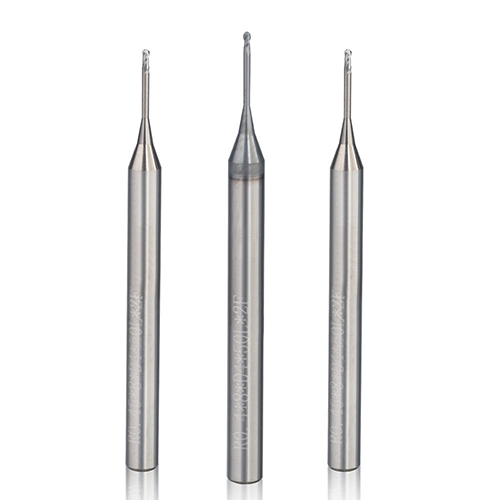

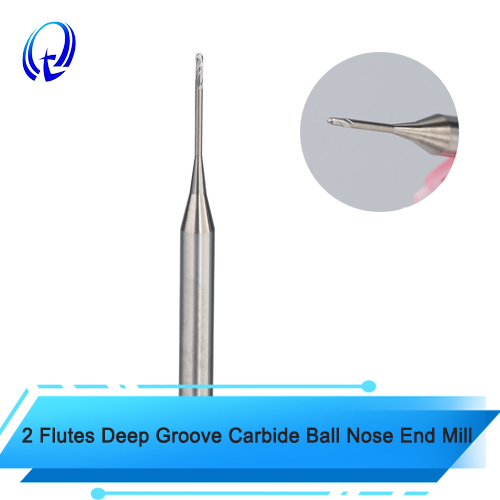

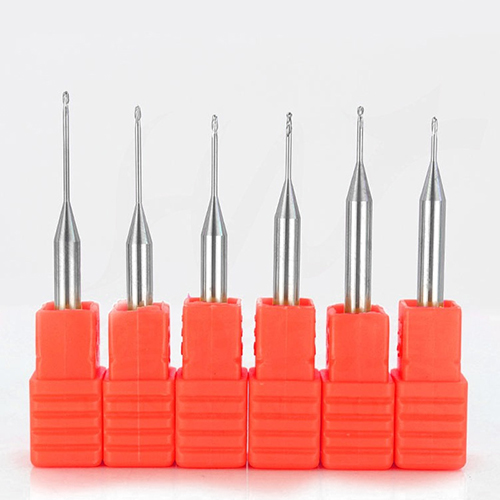

2 Flutes Deep Groove Ball Nose End Mill Carbide Milling Cutter For Aluminum

1. **Deep groove design for smooth chip evacuation:** The specially designed deep grooves effectively accommodate and discharge the soft and sticky chips produced when machining aluminum, preventing chip accumulation and tool clogging, ensuring continuous and stable machining. 2. **Sharp cutting edge geometry for light cutting:** The optimized rake angle and relief angle design make the tool cut lightly, reducing cutting resistance, lowering machine load, and achieving a good surface finish. 3. **High-quality carbide for good wear resistance:** Made with domestic high-quality ultra-fine grain cemented carbide material, ensuring the tool has sufficient hardness and wear resistance for high-speed aluminum cutting, extending its service life. **Domestic brand raw materials offer a high cost-performance ratio and good stability.**

Description Package Information Inquiry

Products Function

Material: Tungsten Cobalt Alloy, Tungsten Carbide

Machine Type: Milling Machine

Precision: 0.005-0.01mm

Flute: 2-Flute Ball Nose

Coating: None

HRC: HRC55

Suitable For: Aluminum

Products Features

1. Cutting edge design optimized for aluminum: The sharp cutting edges with a large rake angle ensure light cutting and effectively reduce chip adhesion and built-up edge (BUE) issues when machining aluminum.

2. Deepened flute design for smooth chip evacuation: The deep flute structure enhances chip removal space, suitable for high-speed aluminum machining, avoiding tool wear caused by poor chip evacuation.

3. High-gloss mirror-polished cutting edge treatment: The cutting edges are treated with a mirror polishing process, reducing cutting resistance and improving the machined surface finish, especially suitable for aluminum parts with high surface quality requirements.

4. High-quality cemented carbide substrate: Made with domestic high-strength ultra-fine grain tungsten carbide material, possessing good toughness and wear resistance to extend tool life. Domestic raw materials offer a high cost-performance ratio, achieving cost reduction and efficiency improvement.

5. Suitable for high-speed machine tools, improving efficiency: Applicable to high-speed equipment such as CNC machining centers and high-speed engraving and milling machines, achieving high-speed and high-efficiency aluminum machining.

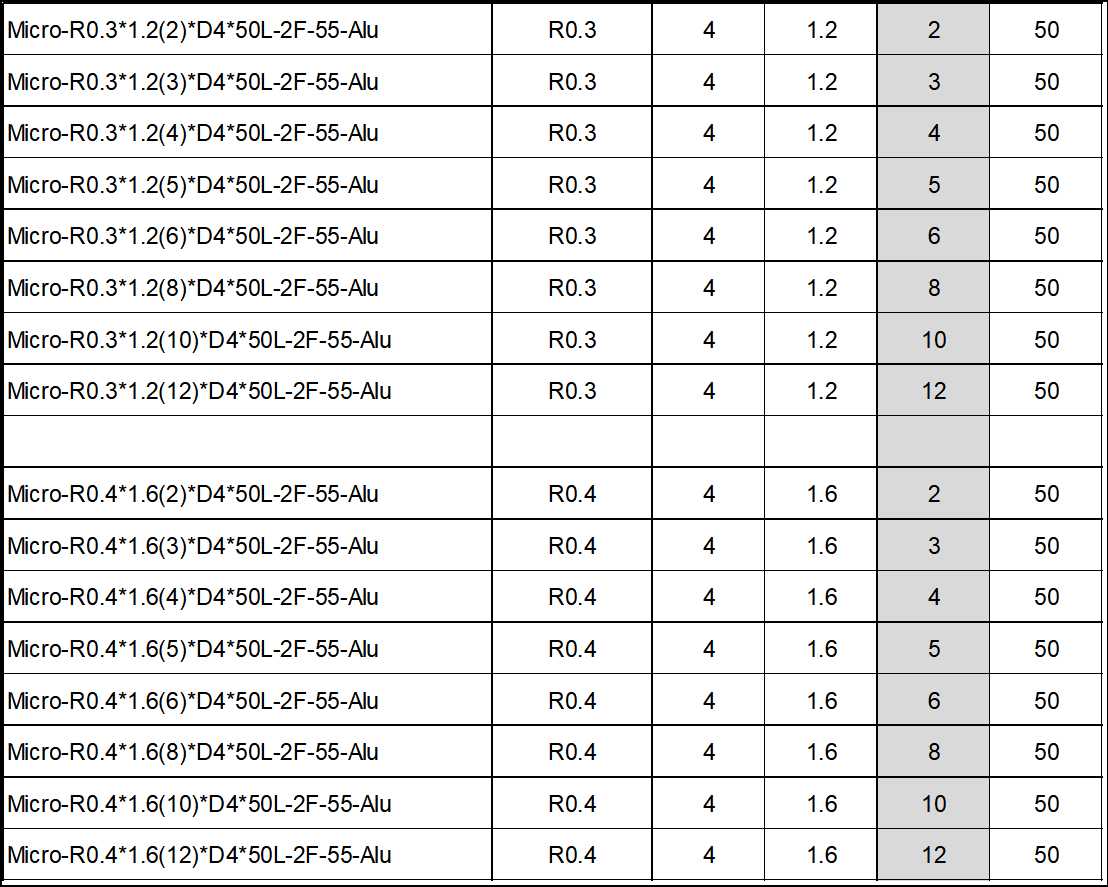

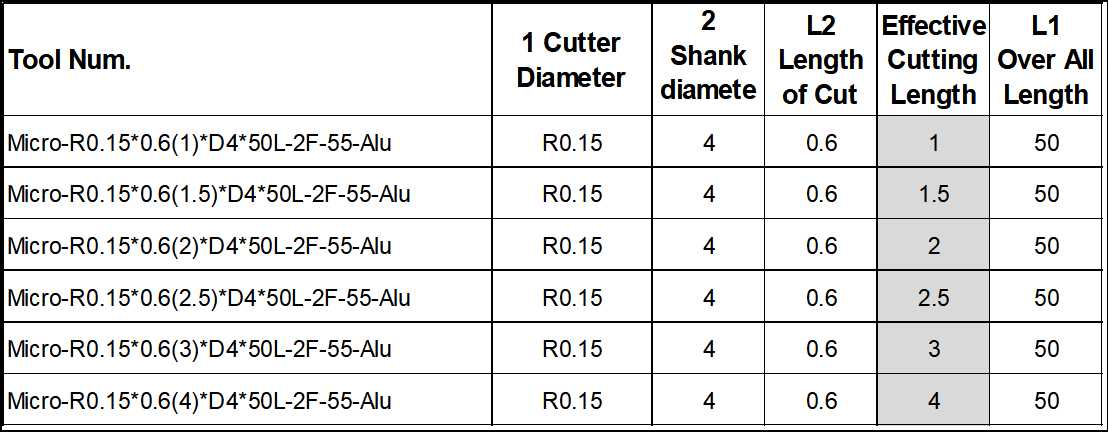

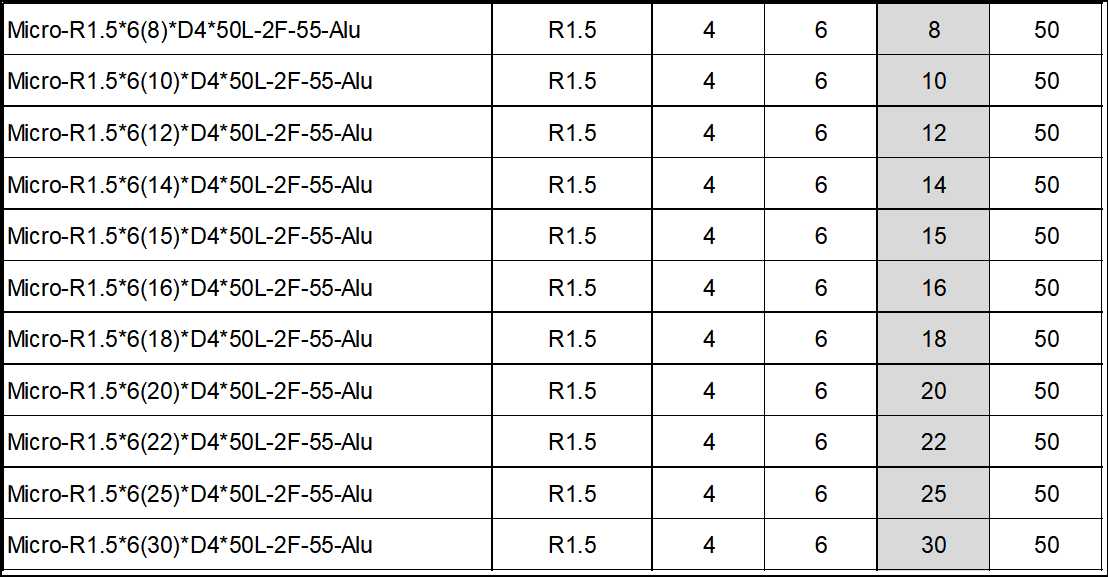

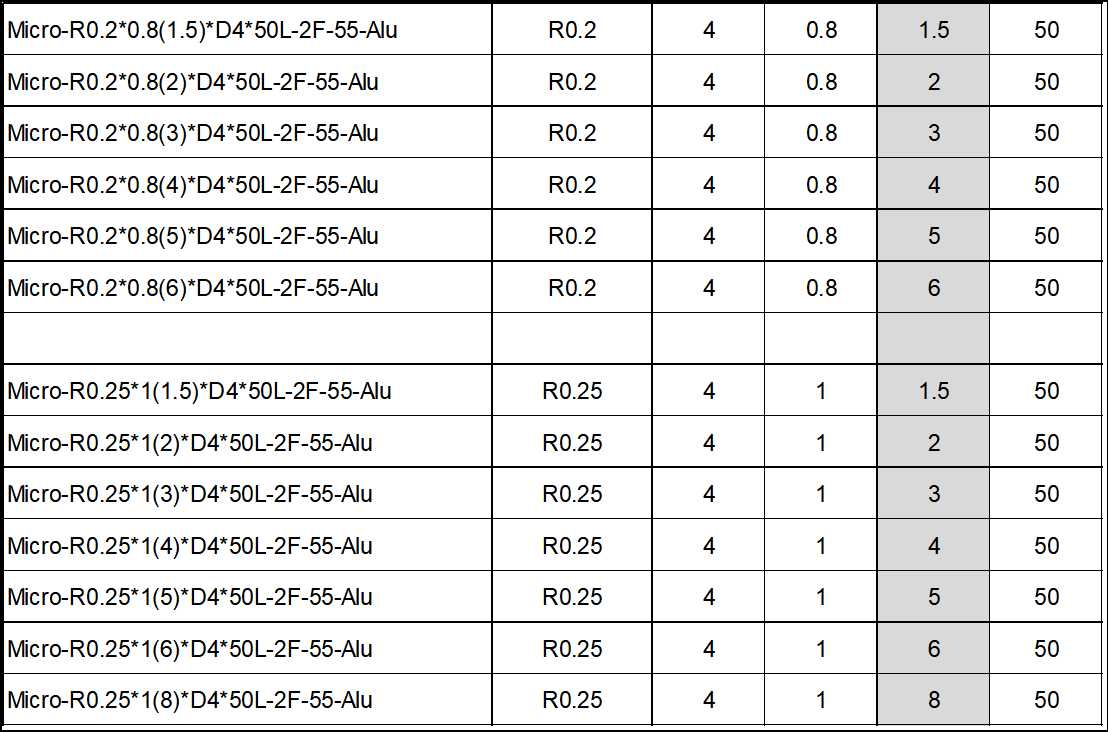

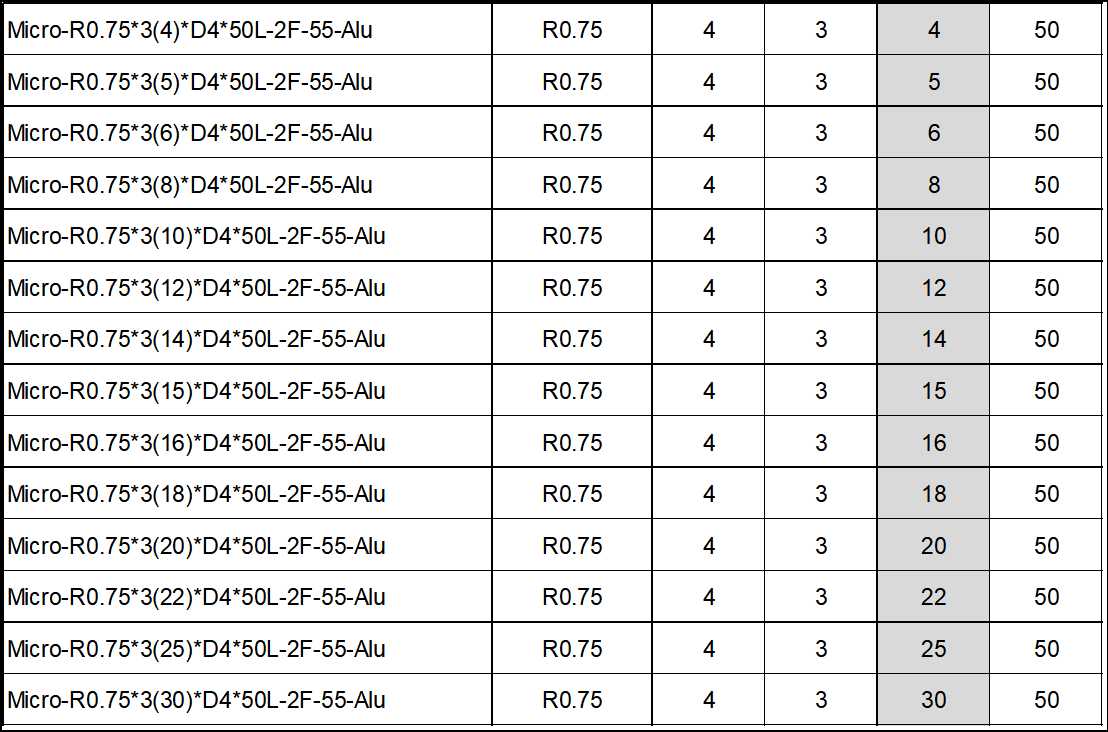

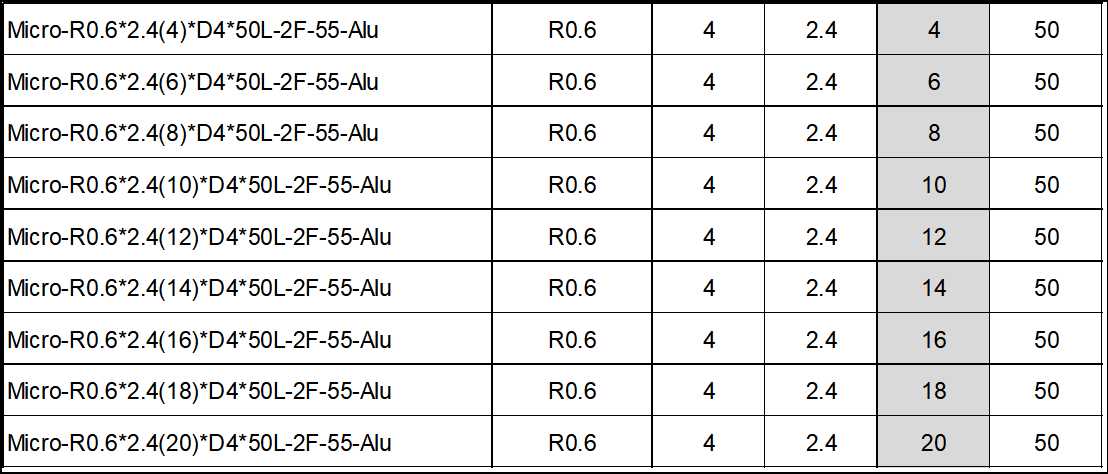

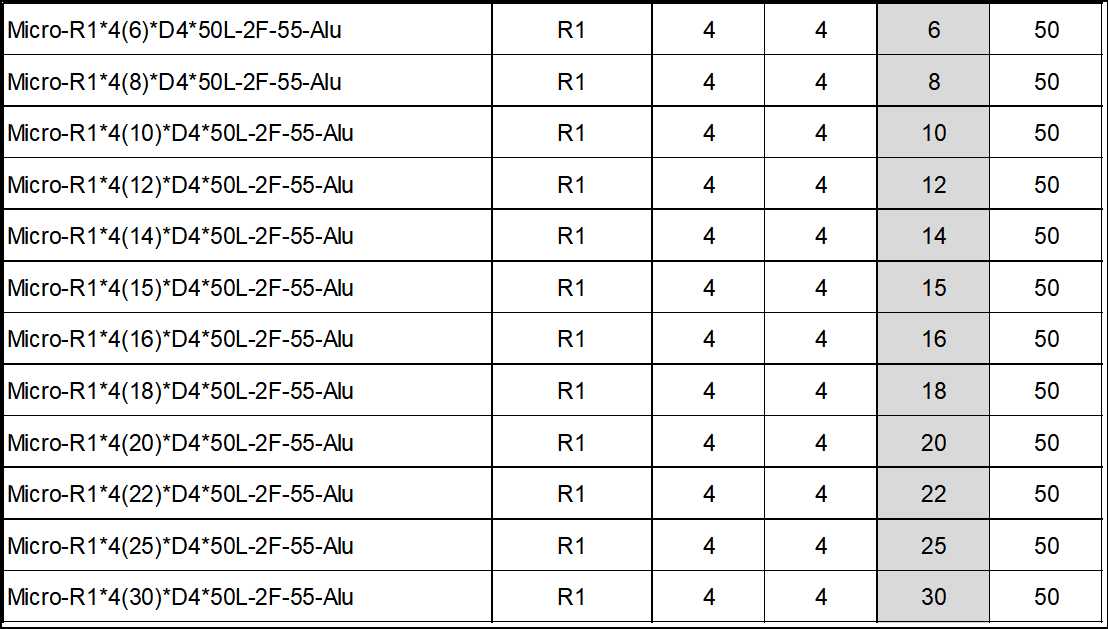

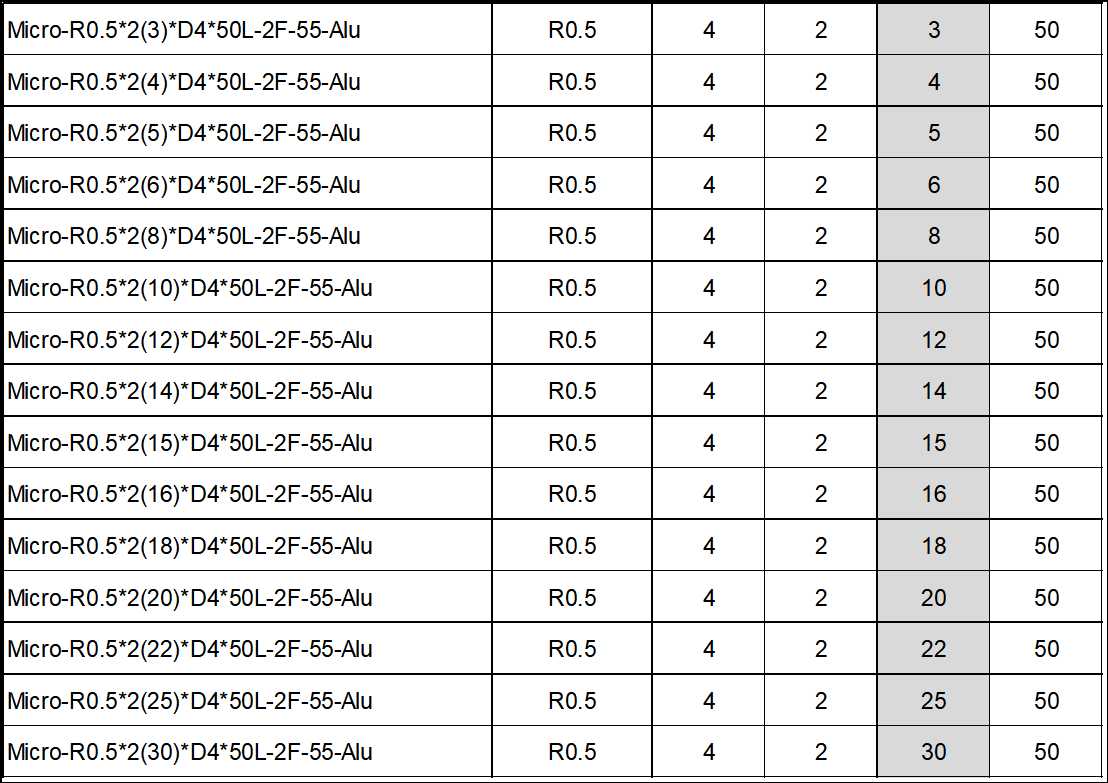

Specifications

Clients Benefits:

1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.

2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.

3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.

4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.

5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.

6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
