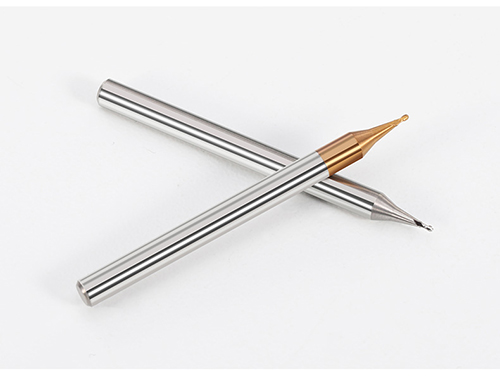

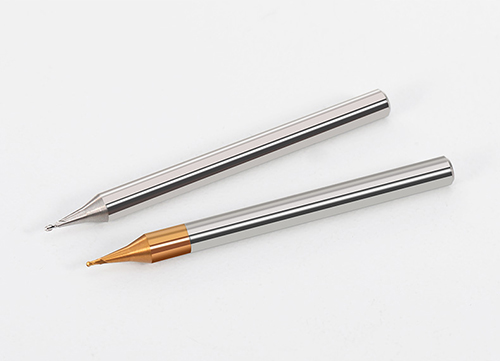

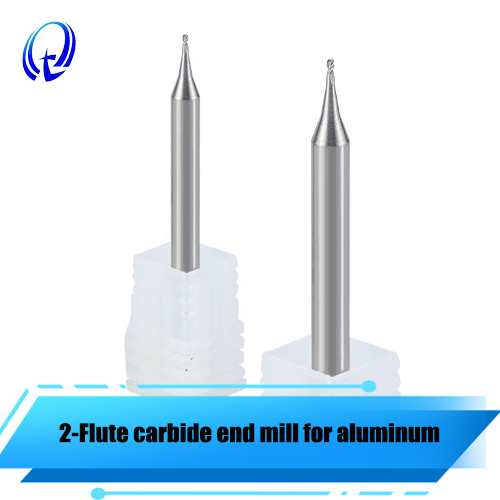

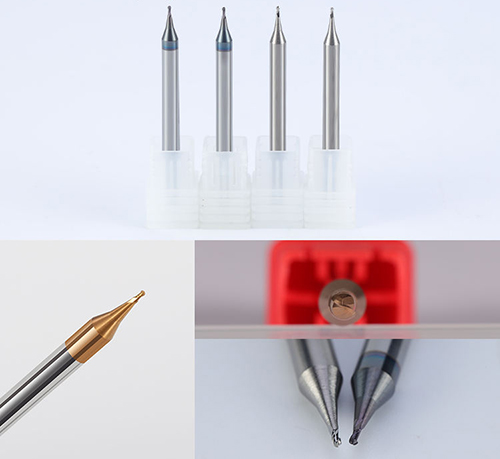

Micro Solid Carbide 2 Flute Ball Nose End Mill For Aluminum
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute
Coating: None
HRC: HRC55
Suitable For: Aluminum
Products Features
Here's the English translation of the provided text:
Specifically designed for aluminum alloy machining: To enhance the surface finish after machining aluminum materials, the cutting edge geometry has been optimized for smoother chip evacuation.
Micro-diameter, high-precision manufacturing: Manufactured using Swiss Rollomatic grinding machines and inspected with German ZOLLER tool presetters, ensuring dimensional accuracy and contour precision for micro-diameter tools, suitable for high-precision part machining.
Ultra-fine grain tungsten carbide substrate: Made with domestic brand ultra-fine grain cemented carbide, balancing high strength and wear resistance to extend tool life.
Mirror-polished cutting edge treatment: The cutting edge is smooth and sharp, reducing cutting resistance, effectively suppressing built-up edge (BUE), and improving machining stability.
Wide range of applicable materials: Compatible with aluminum alloy, aluminum-magnesium alloy, aluminum composite materials, etc., widely used in industries such as mobile phone casings, automotive parts, and precision molds.
Suitable for high-speed spindle machine tools: Can be used on CNC machining centers, high-speed engraving and milling machines, precision engraving machines, etc., meeting the demands of high-speed and high-efficiency machining.
Specifications
| Model No. | D Cutting Diameter (mm) | L Flute length (mm) | D1 Shank Diameter (mm) | L1 Overall length (mm) |
| R0.15*0.6*D4*50L-2F-55-Alu | R0.15 | 0.6 | 4 | 50 |
| R0.2*0.8*D4*50L-2F-55-Alu | R0.2 | 0.8 | 4 | 50 |
| R0.25*1*D4*50L-2F-55-Alu | R0.25 | 1 | 4 | 50 |
| R0.3*1.2*D4*50L-2F-55-Alu | R0.3 | 1.2 | 4 | 50 |
| R0.35*1.4*D4*50L-2F-55-Alu | R0.35 | 1.4 | 4 | 50 |
| R0.4*1.6*D4*50L-2F-55-Alu | R0.4 | 1.6 | 4 | 50 |
| R0.45*1.8*D4*50L-2F-55-Alu | R0.45 | 1.8 | 4 | 50 |
| R0.55*2.2*D4*50L-2F-55-Alu | R0.55 | 2.2 | 4 | 50 |
| R0.6*2.4*D4*50L-2F-55-Alu | R0.6 | 2.4 | 4 | 50 |
| R0.65*2.6*D4*50L-2F-55-Alu | R0.65 | 2.6 | 4 | 50 |
| R0.7*2.8*D4*50L-2F-55-Alu | R0.7 | 2.8 | 4 | 50 |
| R0.8*3.2*D4*50L-2F-55-Alu | R0.8 | 3.2 | 4 | 50 |
| R0.85*3.4*D4*50L-2F-55-Alu | R0.85 | 3.4 | 4 | 50 |
| R0.9*3.6*D4*50L-2F-55-Alu | R0.9 | 3.6 | 4 | 50 |
| R0.95*3.8*D4*50L-2F-55-Alu | R0.95 | 3.8 | 4 | 50 |
| R0.16*0.64*D4*50L-2F-55-Alu | R0.16 | 0.64 | 4 | 50 |
| R0.18*0.7*D4*50L-2F-55-Alu | R0.18 | 0.7 | 4 | 50 |
| R0.225*0.9*D4*50L-2F-55-Alu | R0.225 | 0.9 | 4 | 50 |
| R0.23*0.92*D4*50L-2F-55-Alu | R0.23 | 0.92 | 4 | 50 |
| R0.275*1.1*D4*50L-2F-55-Alu | R0.275 | 1.1 | 4 | 50 |
| R0.28*1.12*D4*50L-2F-55-Alu | R0.28 | 1.12 | 4 | 50 |
| R0.31*1.24*D4*50L-2F-55-Alu | R0.31 | 1.24 | 4 | 50 |
| R0.325*1.3*D4*50L-2F-55-Alu | R0.325 | 1.3 | 4 | 50 |
| R0.34*1.36*D4*50L-2F-55-Alu | R0.34 | 1.36 | 4 | 50 |
| R0.36*1.44*D4*50L-2F-55-Alu | R0.36 | 1.44 | 4 | 50 |
| R0.375*1.5*D4*50L-2F-55-Alu | R0.375 | 1.5 | 4 | 50 |
| R0.41*1.64*D4*50L-2F-55-Alu | R0.41 | 1.64 | 4 | 50 |
| R0.525*2.1*D4*50L-2F-55-Alu | R0.525 | 2.1 | 4 | 50 |
| R0.74*2.96*D4*50L-2F-55-Alu | R0.74 | 2.96 | 4 | 50 |
| R0.88*3.52*D4*50L-2F-55-Alu | R0.88 | 3.52 | 4 | 50 |
