Products Function

• 55° Profile Design: Specifically engineered for Whitworth (BSW), BSP, and G series pipe threads.

• Hard Material Expert: Optimized for machining Quenched Steel (45°-65° HRC) and difficult-to-cut alloys.

• Multi-Pitch Versatility: Single-tooth geometry allows one tool to cut various pitches (TPI) with the same 55° profile.

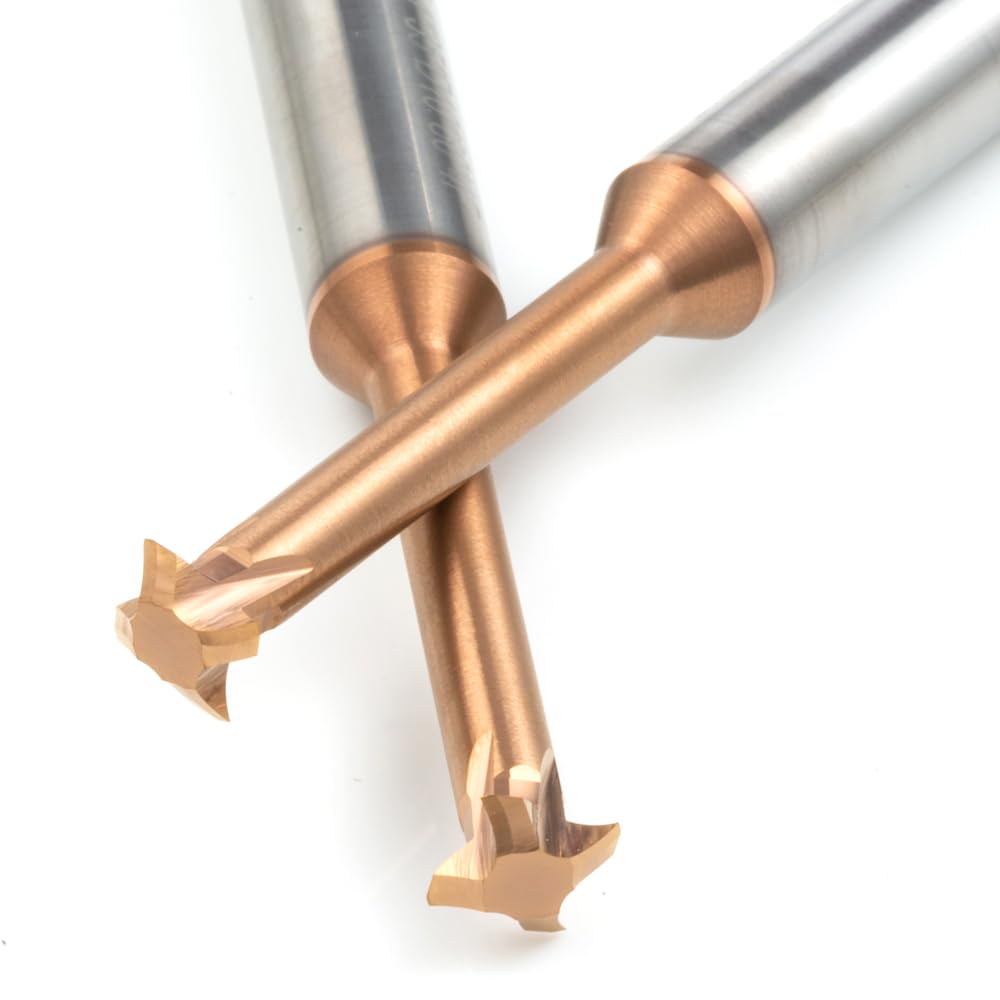

• Premium Coating: ATNIS / AlCrN multi-layer coating provides exceptional heat resistance and wear protection.

• Deep Hole Stability: Low cutting pressure design minimizes deflection, perfect for deep thread milling.

Specifications

Product Description

Overview

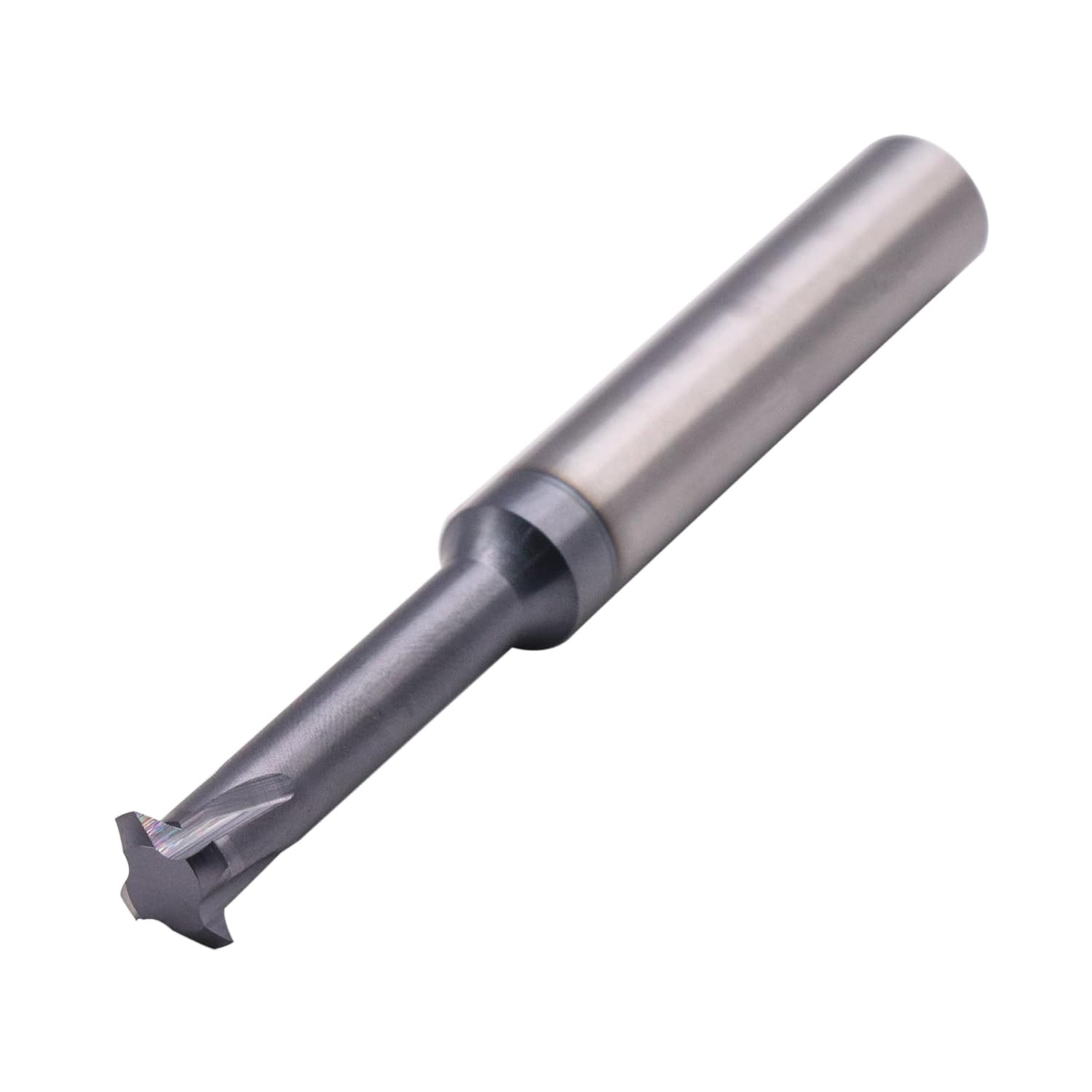

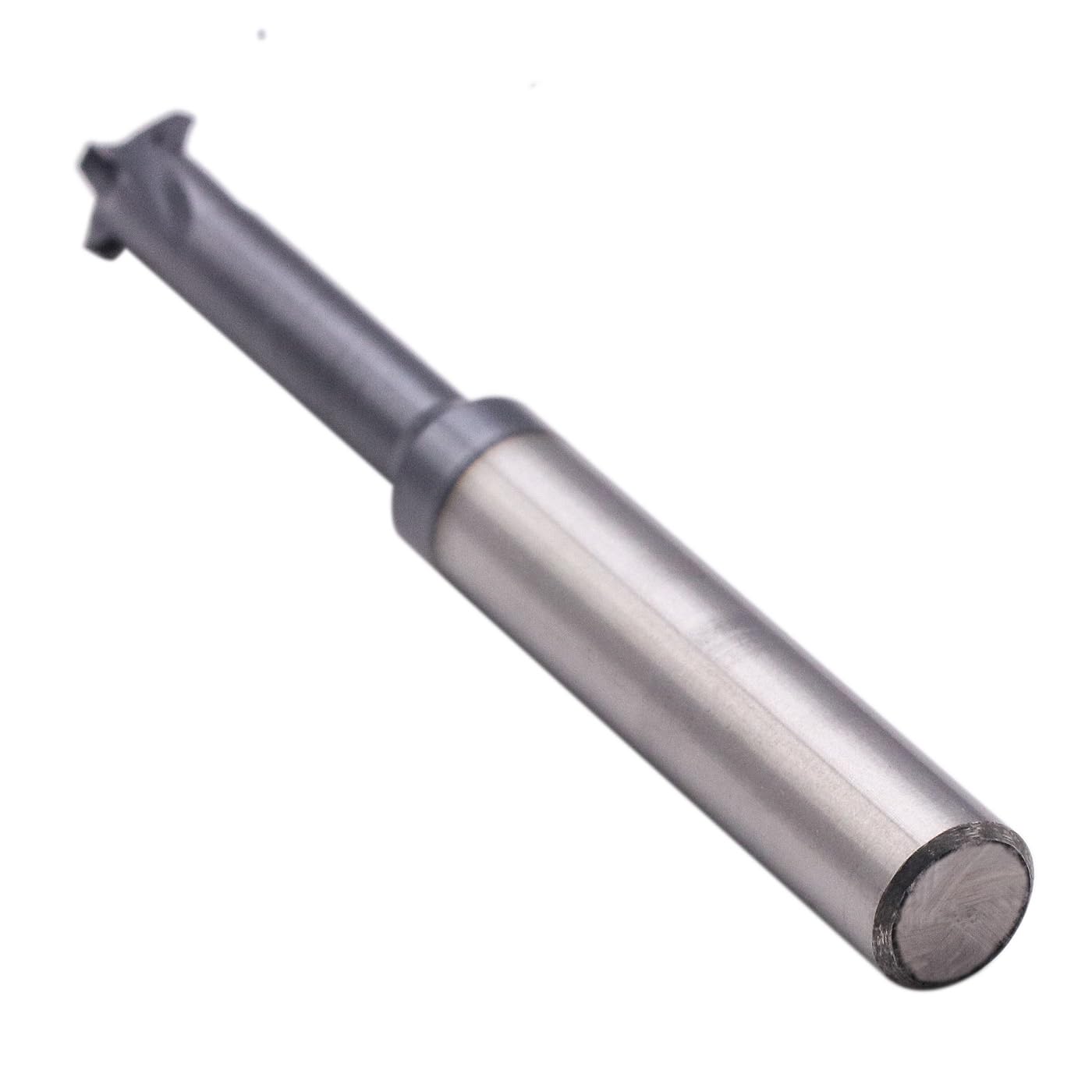

Achieve superior thread quality in the toughest materials with our 55° Solid Carbide Single Tooth Thread Mill. Unlike standard 60° cutters, this tool is precision-ground with a 55-degree tip angle, making it the perfect solution for machining British Standard (Whitworth, BSW, BSP, G) threads in modern CNC applications.

Designed for Hardened Steel (45-65 HRC)

Machining threads in quenched steel is a challenge. Our cutter features a premium ATNIS / AlCrN multi-layer composite coating, which offers extreme thermal stability. This allows the tool to maintain its cutting edge even when generating high heat in materials up to 65 HRC, significantly extending tool life compared to standard uncoated or TiAlN coated tools.

Why Choose Single Tooth (Single Point)?

• Versatility: A single tool can machine a wide range of thread pitches (TPI), reducing your tool inventory.

• Low Cutting Force: The single-point contact reduces radial pressure, preventing tool breakage and tapering, especially in deep hole applications.

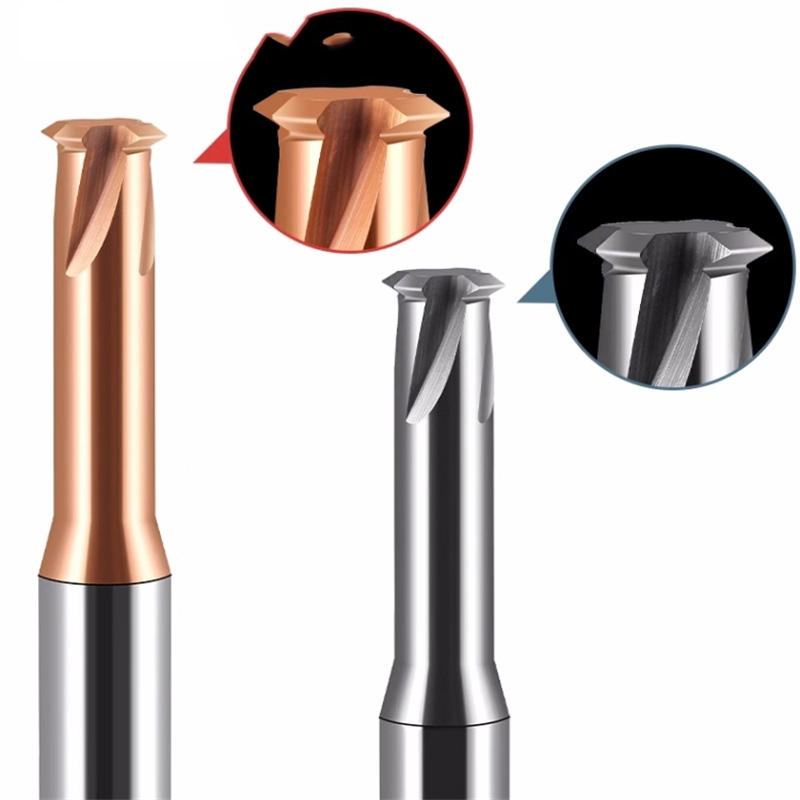

• Chip Evacuation: The 3 or 4-flute design ensures ample space for chip removal, preventing clogging in deep threads.

Applications

Hydraulic components requiring BSP/G threads.

Aerospace and Automotive parts made of hardened steel.

Mold and Die making.

 FAQ

Q: What is the difference between this 55° mill and a standard 60° mill?

A: Standard 60° mills are for Metric (M) and American UN threads. This 55° mill is specifically designed for British Standard Whitworth (BSW) and Pipe Threads (BSP/G). Using the wrong angle will result in a non-conforming thread profile.

Q: Can this tool cut different thread sizes?

A: Yes! Since it is a single-tooth cutter, you can use helical interpolation to cut any thread diameter and any pitch (TPI), as long as the thread profile requires a 55° angle.

Q: Is it suitable for blind holes?

A: Absolutely. The single-tooth design cuts to the bottom of the hole effectively, and the flute design helps evacuate chips upwards, making it ideal for both blind and through holes.
