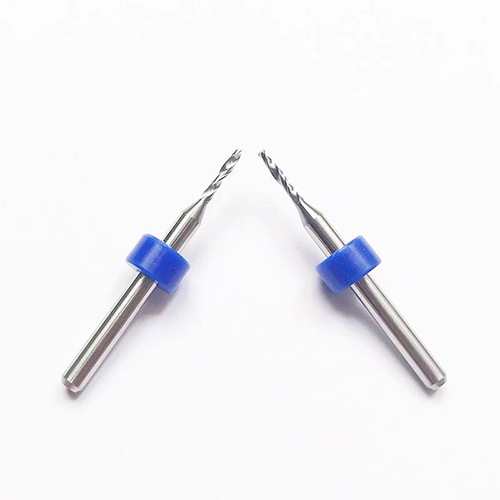

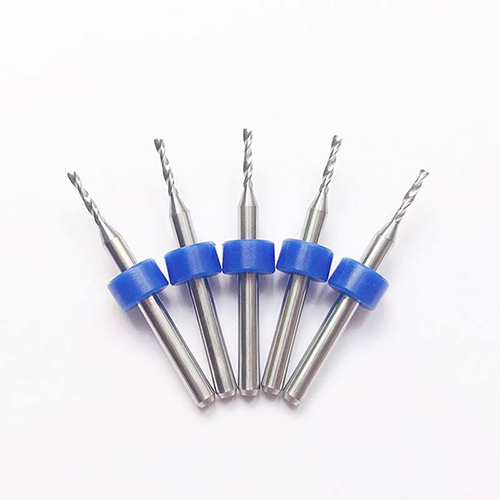

3D Small Diameter Solid Carbide Drill Bit – Precision Micro Hole Drilling Tool
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Coating: None coated/ Customized coated
HRC: HRC55-65
Suitable For: steel, stainless steel, cast iron, and non-ferrous metals
Products Features
Micro Diameter Design
Available in diameters as small as 0.1mm, ideal for micro-drilling in electronics, medical, and precision parts.High-Quality Solid Carbide
Made from ultra-fine grain tungsten carbide for superior hardness, heat resistance, and tool life.Precision Ground Flutes
Optimized geometry ensures smooth chip evacuation and reduced breakage in high-speed micro drilling.High-Speed CNC Compatible
Perfect for CNC machining centers, automatic lathes, and micro-drilling machines with stable performance.Tight Tolerance & Clean Finish
Achieves tight hole tolerances and smooth finishes, even in hard-to-machine materials.
Specifications

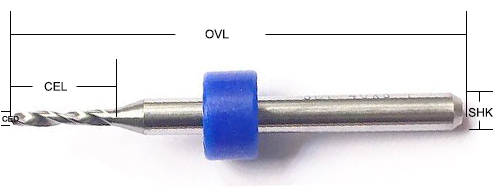

| Model | CED | CEL | SHK | OVL | Flutes |
| D1.0*4*D4*50*2F-3D | D1.0 | 4 | D4 | 50 | 2F |
| D1.1*4*D4*50*2F-3D | D1.1 | 4 | D4 | 50 | 2F |
| D1.2*4*D4*50*2F-3D | D1.2 | 4 | D4 | 50 | 2F |
| D1.3*5*D4*50*2F-3D | D1.3 | 5 | D4 | 50 | 2F |
| D1.4*5*D4*50*2F-3D | D1.4 | 5 | D4 | 50 | 2F |
| D1.5*6*D4*50*2F-3D | D1.5 | 6 | D4 | 50 | 2F |
| D1.6*6*D4*50*2F-3D | D1.6 | 6 | D4 | 50 | 2F |
| D1.7*7*D4*50*2F-3D | D1.7 | 7 | D4 | 50 | 2F |
| D1.8*7*D4*50*2F-3D | D1.8 | 7 | D4 | 50 | 2F |
| D1.9*8*D4*50*2F-3D | D1.9 | 8 | D4 | 50 | 2F |
| D2.0*8*D4*50*2F-3D | D2.0 | 8 | D4 | 50 | 2F |
| D2.1*9*D4*50*2F-3D | D2.1 | 9 | D4 | 50 | 2F |
| D2.2*9*D4*50*2F-3D | D2.2 | 9 | D4 | 50 | 2F |
| D2.3*9*D4*50*2F-3D | D2.3 | 9 | D4 | 50 | 2F |
| D2.4*10*D4*50*2F-3D | D2.4 | 10 | D4 | 50 | 2F |
| D2.5*10*D4*50*2F-3D | D2.5 | 10 | D4 | 50 | 2F |
| D2.6*11*D4*50*2F-3D | D2.6 | 11 | D4 | 50 | 2F |
| D2.7*11*D4*50*2F-3D | D2.7 | 11 | D4 | 50 | 2F |
| D2.8*11*D4*50*2F-3D | D2.8 | 11 | D4 | 50 | 2F |
| D2.9*12*D4*50*2F-3D | D2.9 | 12 | D4 | 50 | 2F |
Blients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
