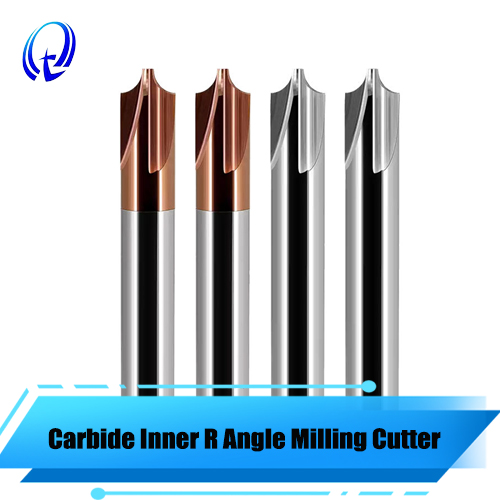

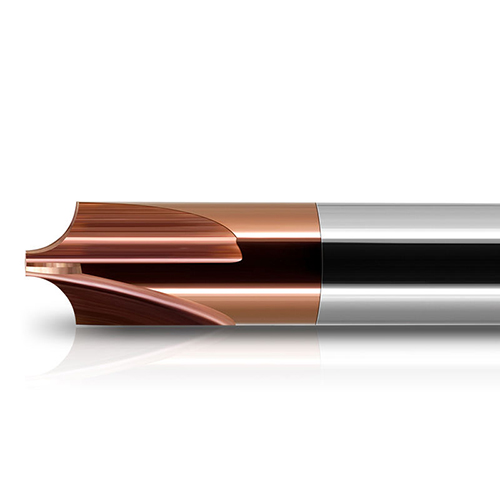

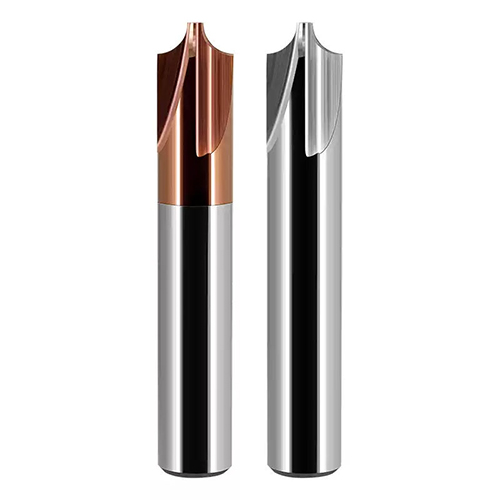

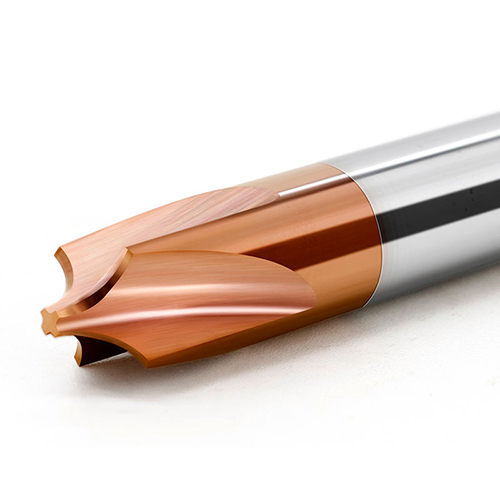

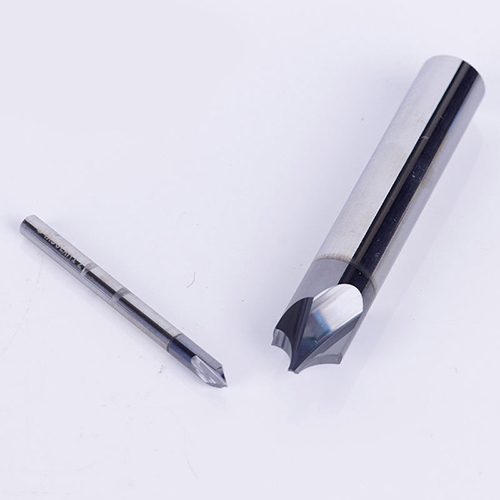

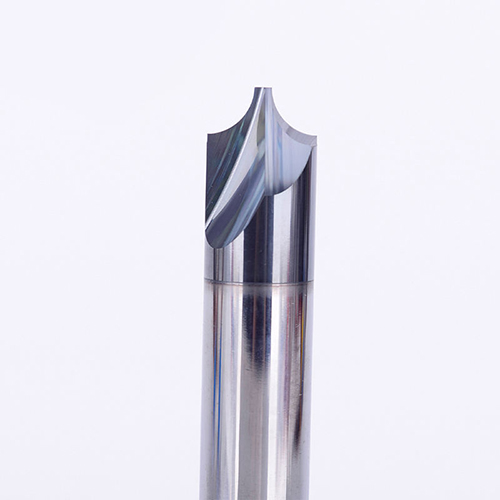

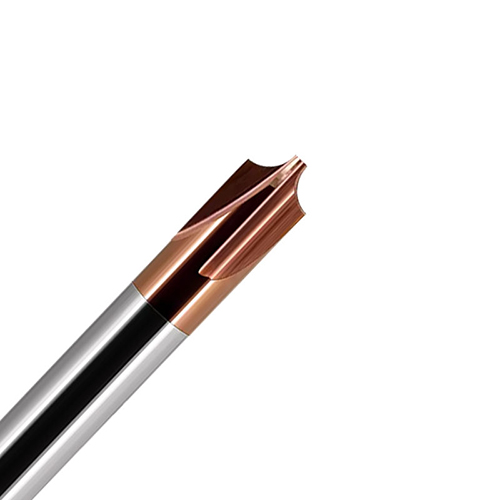

Inner R Angle Milling Cutter Carbide Corner Rounding End Mill
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Flute: 2/4 Flute
Coating: None coated/ TiSiN Coated / Black Nano Coated
HRC: HRC55/65/70
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Products Features
1. Utilizes imported high-quality raw materials, unlike cheaper recycled materials on the market, ensuring stable and reliable tool performance and extended service life.
2. Processed using imported Swiss Rollomatic grinding machines, achieving micron-level machining accuracy and guaranteeing precise tool dimensions and geometry.
3. Undergoes ex-factory inspection using imported German ZOLLER tool presetters, ensuring precise measurement and quality control for every tool to meet strict factory standards.
4. 10 years of focus on CNC cutting tools, optimizing tools to help enterprises reduce costs and increase efficiency. Provides customized solutions to help clients optimize machining processes and achieve the best input-output ratio.

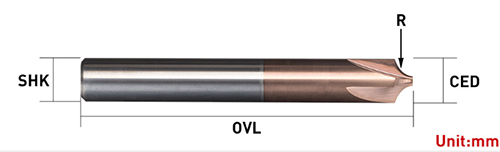

Specifications
| Inner R Angle | Head Dia. | Shank Dia. | Overall length |
| R0.2 | 3.6 | 4 | 50 |
| R0.25 | 3.5 | 4 | 50 |
| R0.3 | 3.4 | 4 | 50 |
| R0.4 | 3.2 | 4 | 50 |
| R0.5 | 3 | 4 | 50 |
| R0.6 | 2.8 | 4 | 50 |
| R0.7 | 2.6 | 4 | 50 |
| R0.75 | 2.5 | 4 | 50 |
| R0.8 | 2.4 | 4 | 50 |
| R1 | 2 | 4 | 50 |
| R1.25 | 1.5 | 4 | 50 |
| R1.5 | 1 | 4 | 50 |
| R1.75 | 0.5 | 4 | 50 |
| R1.5 | 3 | 6 | 50 |
| R1.75 | 2.5 | 6 | 50 |
| R2 | 2 | 6 | 50 |
| R2.3 | 1.4 | 6 | 50 |
| R2.5 | 1 | 6 | 50 |
| R2.25 | 3.5 | 8 | 50 |
| R2.5 | 3 | 8 | 50 |
| R3 | 2 | 8 | 50 |
| R3.25 | 1.5 | 8 | 50 |
| R3.5 | 1 | 8 | 50 |
| R3.75 | 2.5 | 10 | 60 |
| R4 | 2 | 10 | 60 |
| R4.5 | 3 | 12 | 60 |
| R5 | 2 | 12 | 60 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
