Micro Solid Carbide 2 Flute Flat End Mill With TiSiN Coating
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute
Coating: TiSiN
HRC: HRC55
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Products Features
1. Ultra-Fine Cutting Diameter: Suitable for precision micro-machining of molds, electronics, and fine components.
2. 2-Flute Design: Ensures smooth chip evacuation and improved surface finish during high-speed operations.
3. Premium Tungsten Carbide: Made from Chinese branded solid carbide for excellent wear resistance and long tool life.

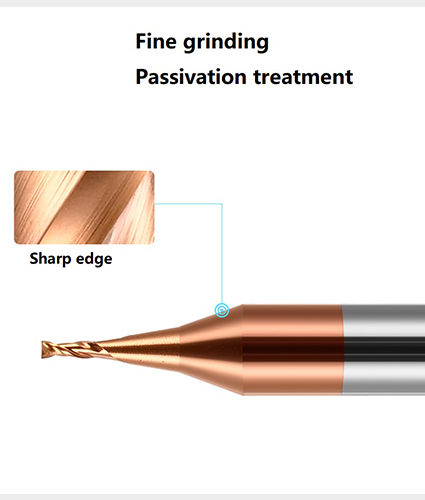

4. Micro-tolerance surface treatment: Manufactured using imported Rollomatic CNC machining centers and inspected with German ZOLLER tool presetters, achieving high dimensional accuracy suitable for demanding micro-milling applications.
5. Suitable for Various Materials: Effective on aluminum, copper, stainless steel, plastics, and resin.
Specifications
| Model No. | D Cutting Diameter (mm) | L Flute length (mm) | D1 Shank Diameter (mm) | L1 Overall length (mm) |
| F-φ0.2*0.4*D4*50L-2F-60-steel | φ0.2 | 0.4 | 4 | 50 |
| F-φ0.21*0.42*D4*50L-2F-60-steel | φ0.21 | 0.42 | 4 | 50 |
| F-φ0.22*0.44*D4*50L-2F-60-steel | φ0.22 | 0.44 | 4 | 50 |
| F-φ0.23*0.46*D4*50L-2F-60-steel | φ0.23 | 0.46 | 4 | 50 |
| F-φ0.24*0.48*D4*50L-2F-60-steel | φ0.24 | 0.48 | 4 | 50 |
| F-φ0.25*0.5*D4*50L-2F-60-steel | φ0.25 | 0.5 | 4 | 50 |
| F-φ0.26*0.52*D4*50L-2F-60-steel | φ0.26 | 0.52 | 4 | 50 |
| F-φ0.27*0.54*D4*50L-2F-60-steel | φ0.27 | 0.54 | 4 | 50 |
| F-φ0.28*0.56*D4*50L-2F-60-steel | φ0.28 | 0.56 | 4 | 50 |
| F-φ0.29*0.58*D4*50L-2F-60-steel | φ0.29 | 0.58 | 4 | 50 |
| F-φ0.30*0.6*D4*50L-2F-60-steel | φ0.30 | 0.6 | 4 | 50 |
| F-φ0.31*0.62*D4*50L-2F-60-steel | φ0.31 | 0.62 | 4 | 50 |
| F-φ0.32*0.64*D4*50L-2F-60-steel | φ0.32 | 0.64 | 4 | 50 |
| F-φ0.33*0.66*D4*50L-2F-60-steel | φ0.33 | 0.66 | 4 | 50 |
| F-φ0.34*0.68*D4*50L-2F-60-steel | φ0.34 | 0.68 | 4 | 50 |
| F-φ0.35*0.7*D4*50L-2F-60-steel | φ0.35 | 0.7 | 4 | 50 |
| F-φ0.36*0.72*D4*50L-2F-60-steel | φ0.36 | 0.72 | 4 | 50 |
| F-φ0.37*0.74*D4*50L-2F-60-steel | φ0.37 | 0.74 | 4 | 50 |
| F-φ0.38*0.76*D4*50L-2F-60-steel | φ0.38 | 0.76 | 4 | 50 |
| F-φ0.39*0.78*D4*50L-2F-60-steel | φ0.39 | 0.78 | 4 | 50 |
| F-φ0.40*0.8*D4*50L-2F-60-steel | φ0.40 | 0.8 | 4 | 50 |
| F-φ0.41*0.82*D4*50L-2F-60-steel | φ0.41 | 0.82 | 4 | 50 |
| F-φ0.42*0.84*D4*50L-2F-60-steel | φ0.42 | 0.84 | 4 | 50 |
| F-φ0.43*0.86*D4*50L-2F-60-steel | φ0.43 | 0.86 | 4 | 50 |
| F-φ0.44*0.88*D4*50L-2F-60-steel | φ0.44 | 0.88 | 4 | 50 |
| F-φ0.45*0.9*D4*50L-2F-60-steel | φ0.45 | 0.9 | 4 | 50 |
| F-φ0.46*0.92*D4*50L-2F-60-steel | φ0.46 | 0.92 | 4 | 50 |
| F-φ0.47*0.94*D4*50L-2F-60-steel | φ0.47 | 0.94 | 4 | 50 |
| F-φ0.48*0.96*D4*50L-2F-60-steel | φ0.48 | 0.96 | 4 | 50 |
| F-φ0.49*0.98*D4*50L-2F-60-steel | φ0.49 | 0.98 | 4 | 50 |
| F-φ0.50*1*D4*50L-2F-60-steel | φ0.50 | 1 | 4 | 50 |
| F-φ0.51*1.02*D4*50L-2F-60-steel | φ0.51 | 1.02 | 4 | 50 |
| F-φ0.52*1.04*D4*50L-2F-60-steel | φ0.52 | 1.04 | 4 | 50 |
| F-φ0.53*1.06*D4*50L-2F-60-steel | φ0.53 | 1.06 | 4 | 50 |
| F-φ0.54*1.08*D4*50L-2F-60-steel | φ0.54 | 1.08 | 4 | 50 |
| F-φ0.55*1.1*D4*50L-2F-60-steel | φ0.55 | 1.1 | 4 | 50 |
| F-φ0.56*1.12*D4*50L-2F-60-steel | φ0.56 | 1.12 | 4 | 50 |
| F-φ0.57*1.14*D4*50L-2F-60-steel | φ0.57 | 1.14 | 4 | 50 |
| F-φ0.58*1.16*D4*50L-2F-60-steel | φ0.58 | 1.16 | 4 | 50 |
| F-φ0.59*1.18*D4*50L-2F-60-steel | φ0.59 | 1.18 | 4 | 50 |
| F-φ0.60*1.2*D4*50L-2F-60-steel | φ0.60 | 1.2 | 4 | 50 |
| F-φ0.61*1.22*D4*50L-2F-60-steel | φ0.61 | 1.22 | 4 | 50 |
| F-φ0.62*1.24*D4*50L-2F-60-steel | φ0.62 | 1.24 | 4 | 50 |
| F-φ0.63*1.26*D4*50L-2F-60-steel | φ0.63 | 1.26 | 4 | 50 |
| F-φ0.64*1.28*D4*50L-2F-60-steel | φ0.64 | 1.28 | 4 | 50 |
| F-φ0.65*1.3*D4*50L-2F-60-steel | φ0.65 | 1.3 | 4 | 50 |
| F-φ0.66*1.32*D4*50L-2F-60-steel | φ0.66 | 1.32 | 4 | 50 |
| F-φ0.67*1.34*D4*50L-2F-60-steel | φ0.67 | 1.34 | 4 | 50 |
| F-φ0.68*1.36*D4*50L-2F-60-steel | φ0.68 | 1.36 | 4 | 50 |
| F-φ0.69*1.38*D4*50L-2F-60-steel | φ0.69 | 1.38 | 4 | 50 |
| F-φ0.70*1.4*D4*50L-2F-60-steel | φ0.70 | 1.4 | 4 | 50 |
| F-φ0.71*1.42*D4*50L-2F-60-steel | φ0.71 | 1.42 | 4 | 50 |
| F-φ0.72*1.44*D4*50L-2F-60-steel | φ0.72 | 1.44 | 4 | 50 |
| F-φ0.73*1.46*D4*50L-2F-60-steel | φ0.73 | 1.46 | 4 | 50 |
| F-φ0.74*1.48*D4*50L-2F-60-steel | φ0.74 | 1.48 | 4 | 50 |
| F-φ0.75*1*D4*50L-2F-60-steel | φ0.75 | 1 | 4 | 50 |
| F-φ0.75*1.5*D4*50L-2F-60-steel | φ0.75 | 1.5 | 4 | 50 |
| F-φ0.76*1.52*D4*50L-2F-60-steel | φ0.76 | 1.52 | 4 | 50 |
| F-φ0.77*1.54*D4*50L-2F-60-steel | φ0.77 | 1.54 | 4 | 50 |
| F-φ0.78*1.56*D4*50L-2F-60-steel | φ0.78 | 1.56 | 4 | 50 |
| F-φ0.79*1.58*D4*50L-2F-60-steel | φ0.79 | 1.58 | 4 | 50 |
| F-φ0.80*1.6*D4*50L-2F-60-steel | φ0.80 | 1.6 | 4 | 50 |
| F-φ0.81*1.62*D4*50L-2F-60-steel | φ0.81 | 1.62 | 4 | 50 |
| F-φ0.82*1.64*D4*50L-2F-60-steel | φ0.82 | 1.64 | 4 | 50 |
| F-φ0.83*1.66*D4*50L-2F-60-steel | φ0.83 | 1.66 | 4 | 50 |
| F-φ0.84*1.68*D4*50L-2F-60-steel | φ0.84 | 1.68 | 4 | 50 |
| F-φ0.85*1.7*D4*50L-2F-60-steel | φ0.85 | 1.7 | 4 | 50 |
| F-φ0.86*1.72*D4*50L-2F-60-steel | φ0.86 | 1.72 | 4 | 50 |
| F-φ0.87*1.74*D4*50L-2F-60-steel | φ0.87 | 1.74 | 4 | 50 |
| F-φ0.88*1.76*D4*50L-2F-60-steel | φ0.88 | 1.76 | 4 | 50 |
| F-φ0.89*1.78*D4*50L-2F-60-steel | φ0.89 | 1.78 | 4 | 50 |
| F-φ0.90*1.8*D4*50L-2F-60-steel | φ0.90 | 1.8 | 4 | 50 |
| F-φ0.95*1.9*D4*50L-2F-60-steel | φ0.95 | 1.9 | 4 | 50 |
| F-φ0.96*1.92*D4*50L-2F-60-steel | φ0.96 | 1.92 | 4 | 50 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
