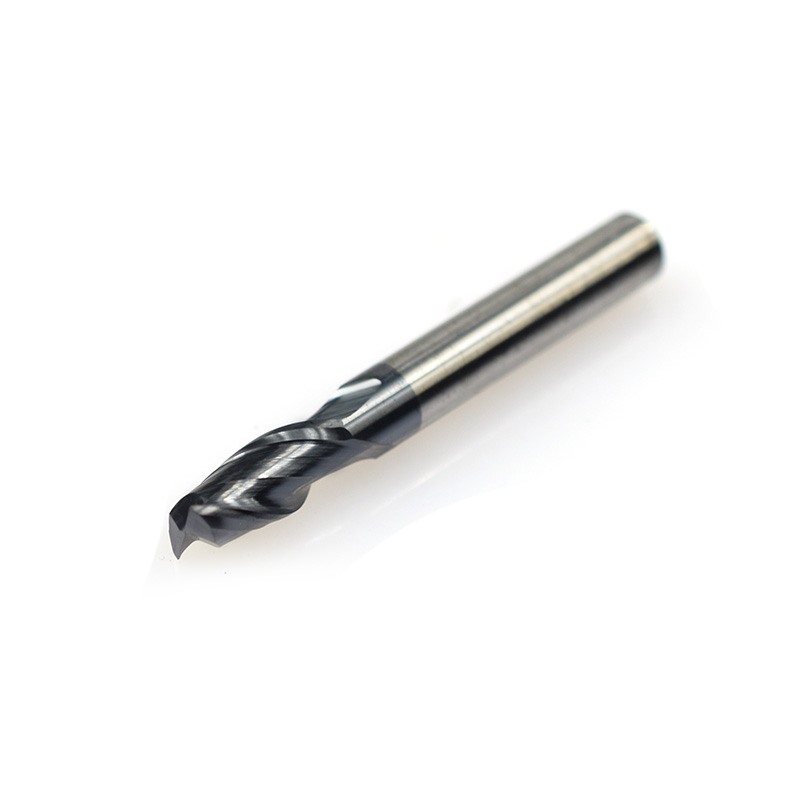

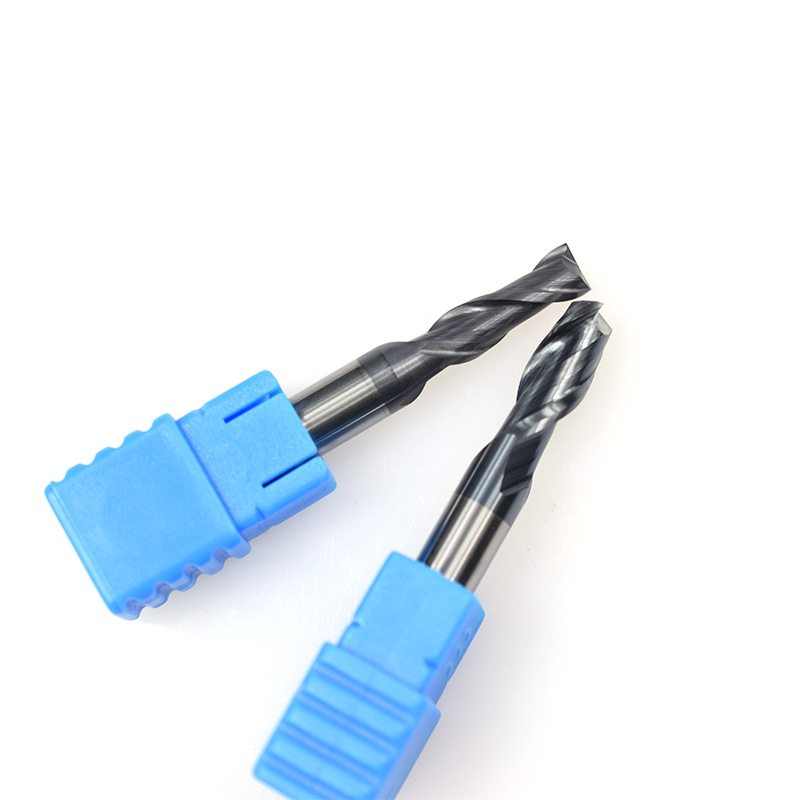

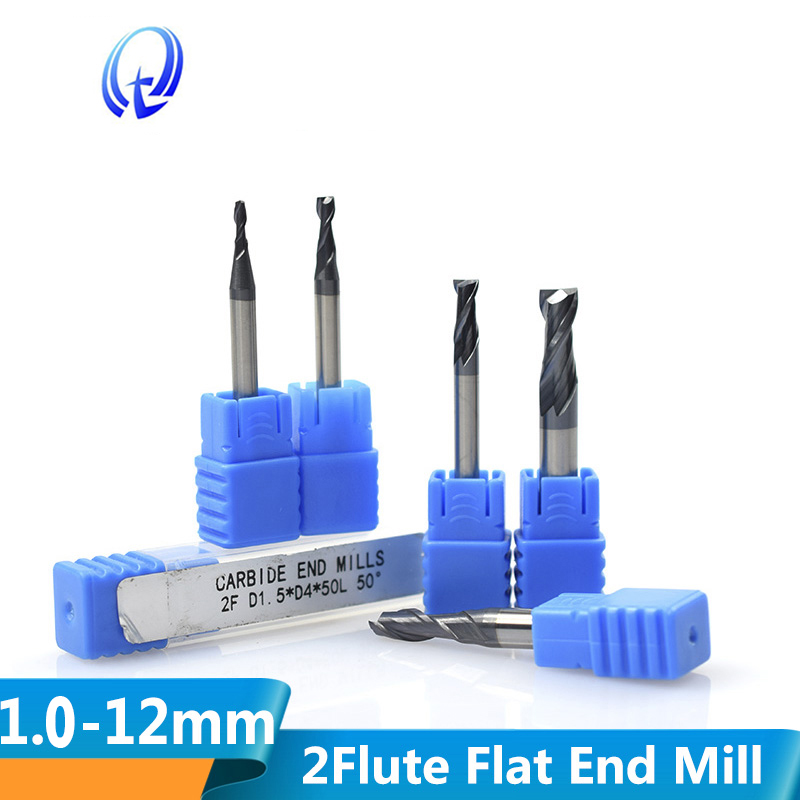

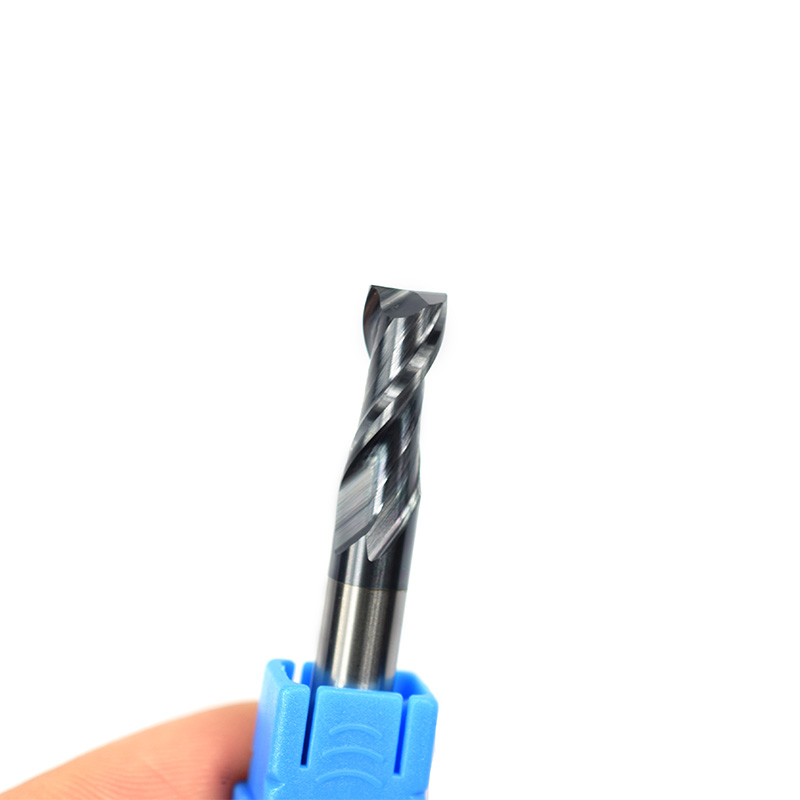

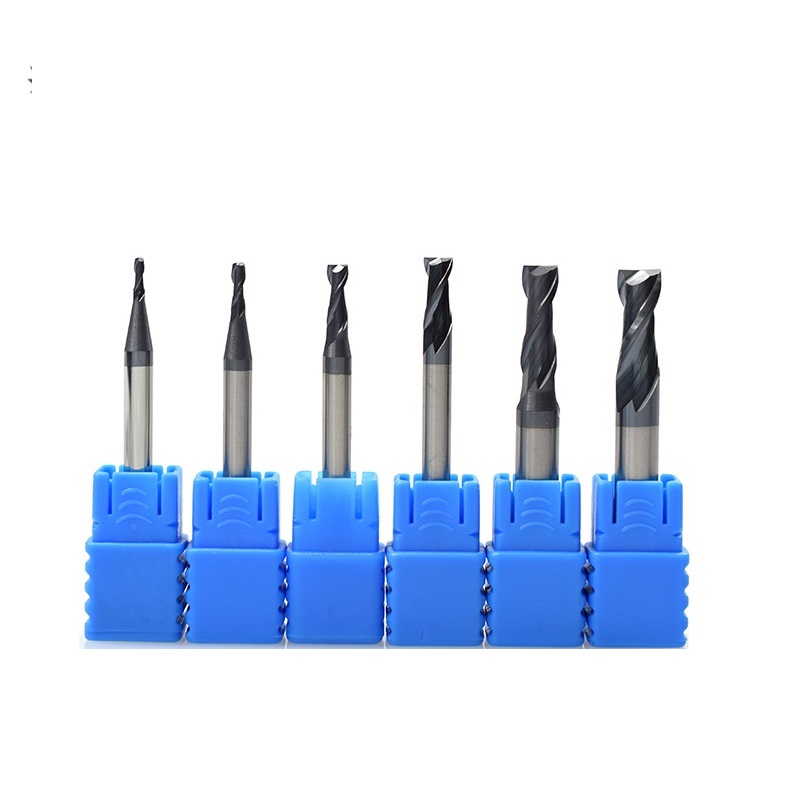

Solid Carbide 2 Flute Flat End Mill With TiSiN Coating HRC55
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute
Coating: TiSiN
HRC: HRC55
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Products Features
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer
2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
3. Heat-resistant Coating: With highly heat-resistant TiSiN coating, can be used for high-speed processing
4. Black Coating: Under black coating, any abrasion is easy to be recognized
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Polished Surface Treatment: With high polished surface treatment, the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved
Specifications
Model No. | D Cutting Diameter (mm) | L Flute length (mm) | D1 Shank Diameter (mm) | L1 Overall length (mm) |
| D1*3*D4*50 | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50 | 2 | 6 | 4 | 50 |
| D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
| D3*8*D4*50 | 3 | 8 | 4 | 50 |
| D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50 | 4 | 10 | 4 | 50 |
| D5*13*D6*50 | 5 | 13 | 6 | 50 |
| D6*15*D6*50 | 6 | 15 | 6 | 50 |
| D8*20*D8*60 | 8 | 20 | 8 | 60 |
| D10*25*D10*75 | 10 | 25 | 10 | 75 |
| D12*30*D12*75 | 12 | 30 | 12 | 75 |
| D14*45*D14*100 | 14 | 45 | 14 | 100 |
| D16*45*D16*100 | 16 | 45 | 16 | 100 |
| D18*45*D18*100 | 18 | 45 | 18 | 100 |
| D20*45*D20*100 | 20 | 45 | 20 | 100 |
| D4*12*D4*75 | 4 | 12 | 4 | 75 |
| D4*16*D4*100 | 4 | 16 | 4 | 100 |
| D6*20*D6*75 | 6 | 20 | 6 | 75 |
| D6*30*D6*100 | 6 | 30 | 6 | 100 |
| D8*25*D8*75 | 8 | 25 | 8 | 75 |
| D8*35*D8*100 | 8 | 35 | 8 | 100 |
| D10*40*D10*100 | 10 | 40 | 10 | 100 |
| D12*45*D12*100 | 12 | 45 | 12 | 100 |
| D6*35*D6*150 | 6 | 35 | 6 | 150 |
| D8*40*D8*150 | 8 | 40 | 8 | 150 |
| D10*50*D10*150 | 10 | 50 | 10 | 150 |
| D12*60*D12*150 | 12 | 60 | 12 | 150 |
| D14*65*D14*150 | 14 | 65 | 14 | 150 |
| D16*70*D16*150 | 16 | 70 | 16 | 150 |
| D18*70*D18*150 | 18 | 70 | 18 | 150 |
| D20*70*D20*150 | 20 | 70 | 20 | 150 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
