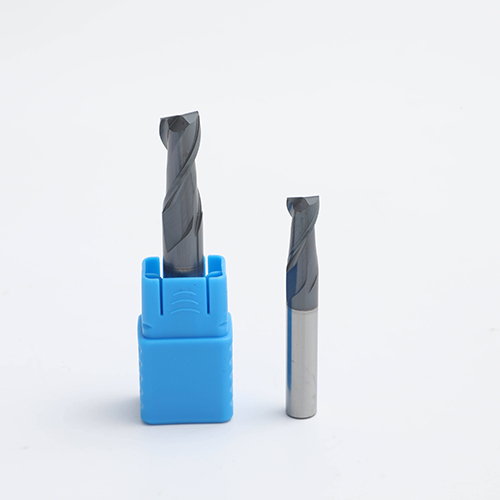

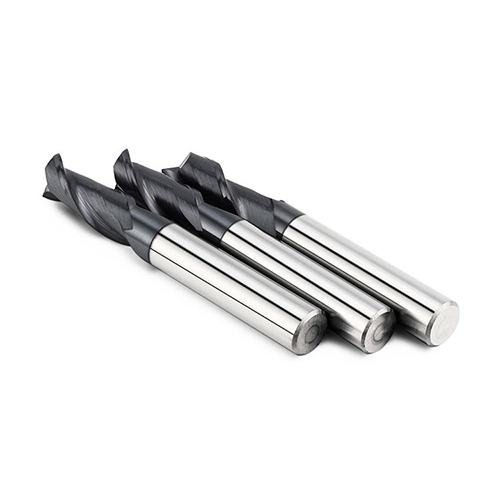

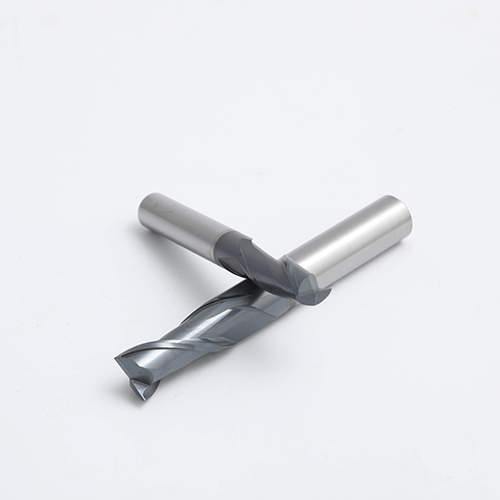

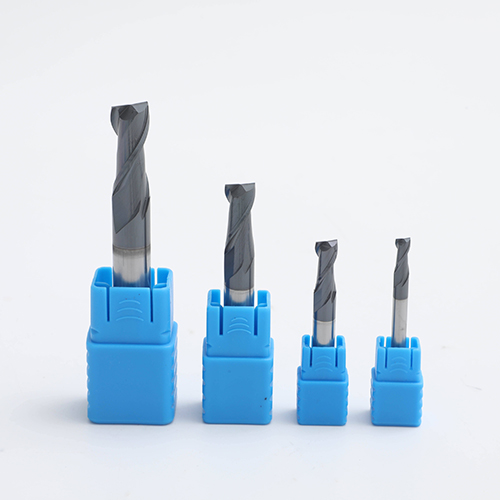

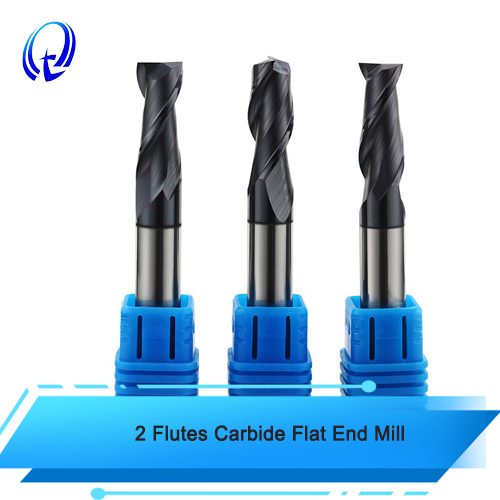

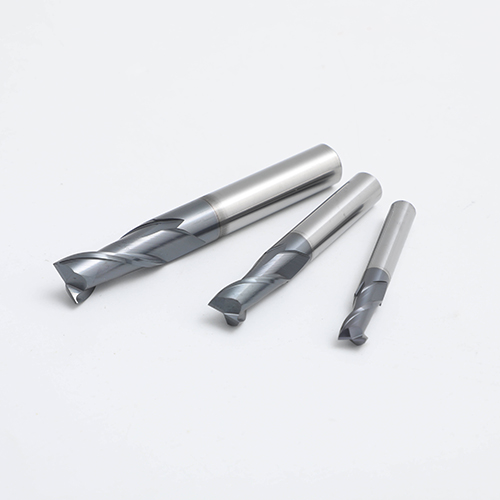

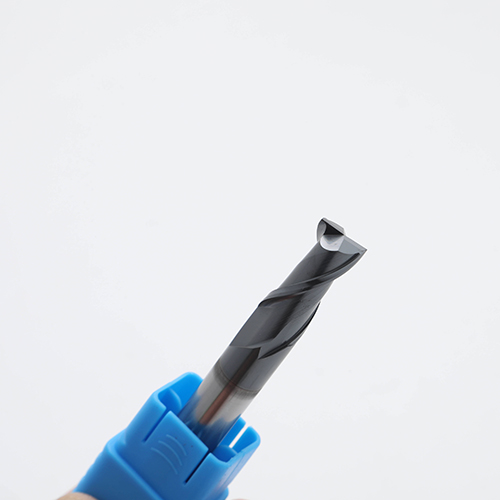

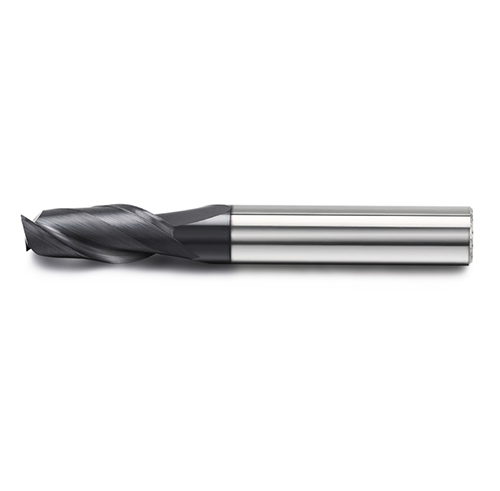

2 Flutes Carbide Flat End Mill for steel Milling Cutter
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute Flat end mill
Coating: TiSiN
HRC: HRC55
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Products Features
1. High Hardness and High Wear Resistance: Adopts domestic high-quality ultra-fine grain tungsten carbide substrate, possessing extremely high hardness and excellent wear resistance. Domestic raw materials offer a very high cost-performance ratio, helping you achieve cost reduction and efficiency improvement.
2. Sharp Two-Flute Design: The two-flute structure provides higher cutting efficiency and good chip removal, especially suitable for roughing operations.
3. High-Precision Tool Manufacturing: Processed using Swiss imported CNC grinding equipment, ensuring high dimensional accuracy, excellent concentricity, strong stability, and superior machined surface quality.
4. Strong Versatility: Suitable for roughing and finishing of various steel materials such as carbon steel, alloy steel, and mold steel, meeting diverse machining needs.
Specifications
| Tool Num. | 1 Cutter Diameter | 2 Shank diameter | L2 Length of Cut | L1 Over All Length |
| F-1*2*D4*50L-2F-55-steel | 1 | 4 | 2 | 50 |
| F-1*3*D4*50L-2F-55-steel | 1 | 4 | 3 | 50 |
| F-1.5*3*D4*50L-2F-55-steel | 1.5 | 4 | 3 | 50 |
| F-1.5*4.5*D4*50L-2F-55-steel | 1.5 | 4 | 4.5 | 50 |
| F-2*4*D4*50L-2F-55-steel | 2 | 4 | 4 | 50 |
| F-2*6*D4*50L-2F-55-steel | 2 | 4 | 6 | 50 |
| F-2.5*5*D4*50L-2F-55-steel | 2.5 | 4 | 5 | 50 |
| F-2.5*7.5*D4*50L-2F-55-steel | 2.5 | 4 | 7.5 | 50 |
| F-3*6*D4*50L-2F-55-steel | 3 | 4 | 6 | 50 |
| F-3*9*D4*50L-2F-55-steel | 3 | 4 | 9 | 50 |
| F-4*8*D4*50L-2F-55-steel | 4 | 4 | 8 | 50 |
| F-4*10*D4*50L-2F-55-steel | 4 | 4 | 10 | 50 |
| F-4*12*D4*50L-2F-55-steel | 4 | 4 | 12 | 50 |
| F-5*15*D6*50L-2F-55-steel | 5 | 6 | 15 | 50 |
| F-6*12*D6*50L-2F-55-steel | 6 | 6 | 12 | 50 |
| F-6*18*D6*50L-2F-55-steel | 6 | 6 | 18 | 50 |
| F-8*20*D8*60L-2F-55-steel | 8 | 8 | 20 | 60 |
| F-10*25*D10*75L-2F-55-steel | 10 | 10 | 25 | 75 |
| F-10*30*D10*75L-2F-55-steel | 10 | 10 | 30 | 75 |
| F-12*30*D12*75L-2F-55-steel | 12 | 12 | 30 | 75 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
