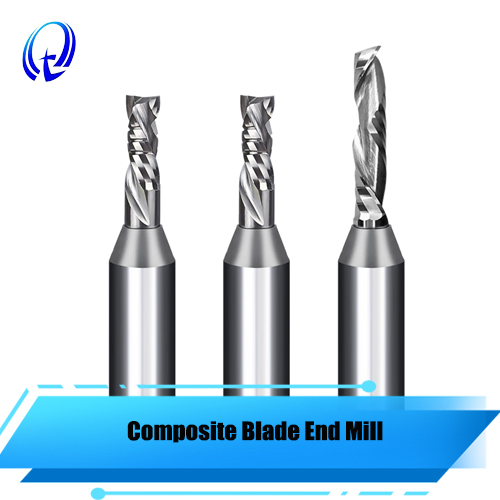

Composite Blade End Mill for Woodworking – CNC Router Bit for Laminates & Composites
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Flute: Multi-Edge Design（single/double/Three）
Coating: None coated
HRC: HRC55
Suitable For: MDF, Plywood, Veneer, Melamine, and HPL Boards
Products Features
Multi-Edge Design for Superior Cutting – Combines up-cut and down-cut flutes for clean top and bottom edges.
Perfect for Laminated & Composite Materials – Avoids chipping and delamination.
Solid Carbide Body – Delivers long tool life and excellent wear resistance.
High-Speed CNC Compatible – Designed for precision routing at high RPM.
Suitable for MDF, Plywood, Veneer, Melamine, and HPL Boards
Specifications

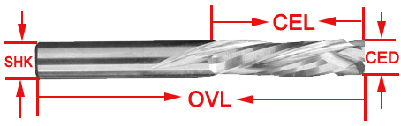

| CED(mm) | CEL(mm） | OVL（mm） | SHK（mm） |
| 3.175 | 12 | 38 | 3.175 |
| 3.175 | 15 | 38 | 3.175 |
| 3.175 | 17 | 38 | 3.175 |
| 3.175 | 22 | 50 | 3.175 |
| 4 | 15 | 45 | 4 |
| 4 | 18 | 45 | 4 |
| 4 | 20 | 45 | 4 |
| 4 | 22 | 45 | 4 |
| 4 | 24 | 50 | 4 |
| 4 | 26 | 50 | 4 |
| 4 | 28 | 50 | 4 |
| 4 | 32 | 60 | 4 |
| 5 | 17 | 50 | 5 |
| 5 | 22 | 50 | 5 |
| 5 | 25 | 50 | 5 |
| 5 | 26 | 50 | 5 |
| 5 | 28 | 60 | 5 |
| 5 | 30 | 60 | 5 |
| 6 | 18 | 50 | 6 |
| 6 | 22 | 50 | 6 |
| 6 | 25 | 60 | 6 |
| 6 | 26 | 60 | 6 |
| 6 | 28 | 60 | 6 |
| 6 | 32 | 60 | 6 |
| 6 | 35 | 65 | 6 |
| 6 | 38 | 70 | 6 |
| 6 | 40 | 75 | 6 |
| 6.35 | 24.5 | 63.5 | 6.35 |
| 6.35 | 24.5 | 76.2 | 6.35 |
| 8 | 20 | 60 | 8 |
| 8 | 22 | 60 | 8 |
| 8 | 26 | 60 | 8 |
| 8 | 28 | 60 | 8 |
| 8 | 32 | 65 | 8 |
| 8 | 35 | 75 | 8 |
| 8 | 38 | 75 | 8 |
| 8 | 40 | 75 | 8 |
| 8 | 45 | 80 | 8 |
| 8 | 52 | 90 | 8 |
| 10 | 35 | 75 | 10 |
| 10 | 38 | 75 | 10 |
| 10 | 40 | 75 | 10 |
| 10 | 45 | 85 | 10 |
| 10 | 52 | 100 | 10 |
| 12 | 52 | 100 | 12 |
| 12.7 | 32 | 76.2 | 12.7 |
| 12.7 | 52 | 101.6 | 12.7 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
