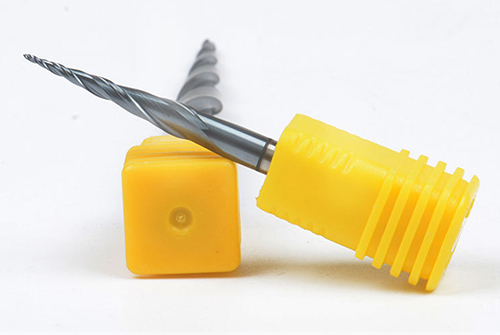

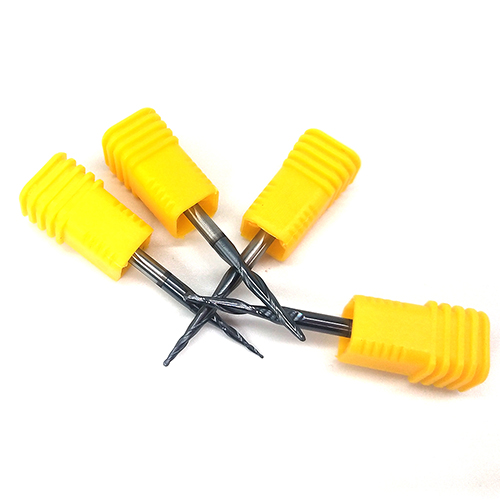

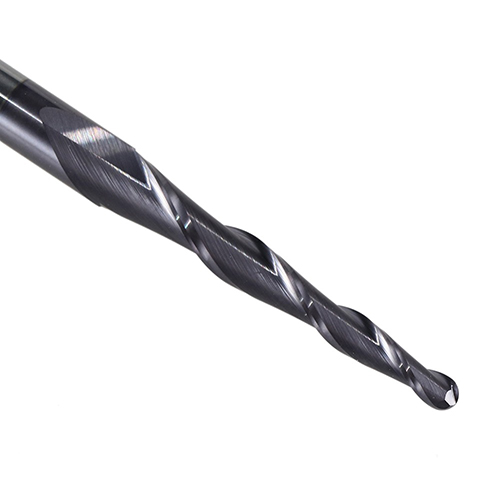

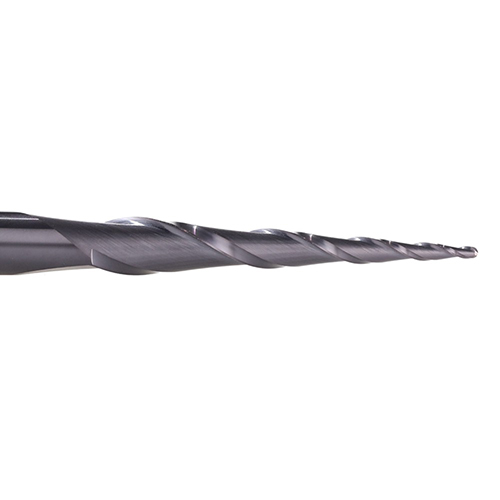

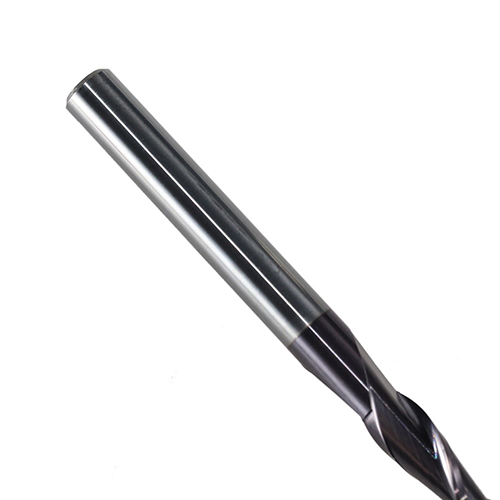

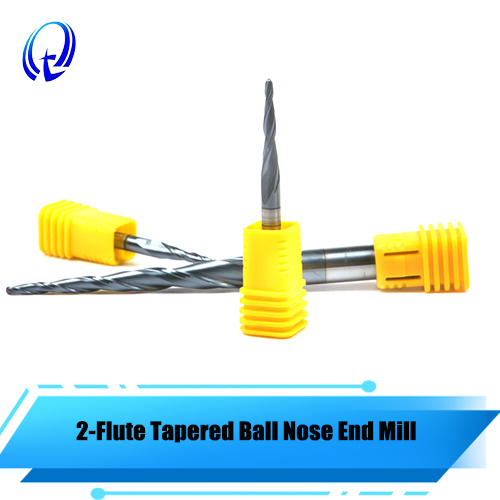

2-Flute Tapered Ball Nose End Mill for Wood Carving, CNC Router Bit for 3D Engraving
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Flute: Double Flute Tapered Ball Nose
Coating: None coated
HRC: HRC55
Suitable For: Wood, MDF, Plastic, Foam
Products Features
Tapered Design for Deep Relief Carving – Allows precision in 3D contouring and detail engraving.
2 Flutes for Smoother Finish – Efficient chip removal and reduced tool vibration.
Solid Carbide Construction – High hardness, wear resistance, and long tool life.
Ideal for Wood, MDF, Plastic, Foam – Perfect for CNC routing of hardwood, softwood, and composites.
High Precision Cutting Edge – Provides excellent surface finish in fine woodworking.
Specifications
| Cutter Diameter(mm) | Shank Diameter(mm) | Length of Cut(mm) | Over All Length(mm) |
| R0.25 | 3.175 | 15 | 38 |
| R0.5 | 3.175 | 3.175 | 15 |
| R0.75 | 3.175 | 3.175 | 15 |
| R1.0 | 3.175 | 3.175 | 15 |
| R0.25 | 4 | 4 | 15 |
| R0.5 | 4 | 4 | 15 |
| R0.75 | 4 | 4 | 15 |
| R1.0 | 4 | 4 | 15 |
| R0.25 | 4 | 4 | 20.5 |
| R0.5 | 4 | 4 | 20.5 |
| R0.75 | 4 | 4 | 20.5 |
| R1.0 | 4 | 4 | 20.5 |
| R0.25 | 6 | 6 | 20 |
| R0.5 | 6 | 6 | 20 |
| R0.75 | 6 | 6 | 20 |
| R1.0 | 6 | 6 | 20 |
| R0.25 | 6 | 6 | 30.5 |
| R0.5 | 6 | 6 | 30.5 |
| R0.75 | 6 | 6 | 30.5 |
| R1.0 | 6 | 6 | 30.5 |
| R1.5 | 6 | 6 | 30.5 |
| R2.0 | 6 | 6 | 30.5 |
| R2.0 | 6 | 6 | 60 |
| R0.5 | 8 | 8 | 47 |
| R1.0 | 8 | 8 | 47 |
| R1.5 | 8 | 8 | 47 |
| R2.0 | 8 | 8 | 47 |
| R0.5 | 8 | 8 | 60 |
| R1.0 | 8 | 8 | 60 |
| R1.5 | 8 | 8 | 60 |
| R2.0 | 8 | 8 | 60 |
| R2.0 | 12 | 12 | 70 |
| R2.0 | 12 | 12 | 70 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
