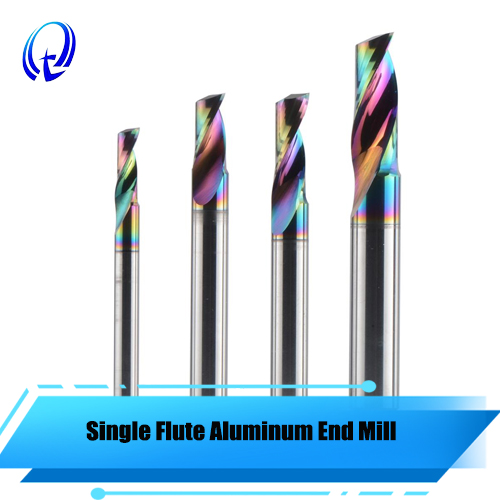

Precision Single Flute Aluminum End Mill
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Flute: Single Flute
Coating: DLC coated
HRC: HRC55/65

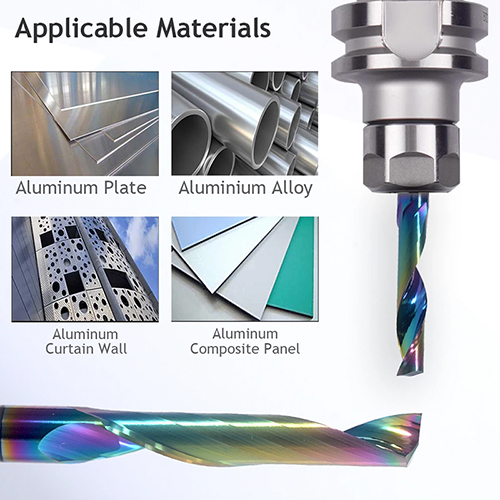

Suitable For: milling, slotting, profiling, and finishing operations in aluminum, brass, copper, and plastics.
Products Features
Optimized Flute Geometry: Specifically designed for efficient chip evacuation in aluminum and non-ferrous metals, preventing chip re-cutting and buildup.
Polished Flute Face: Reduces friction and improves chip flow, leading to a superior surface finish on the workpiece.
Sharp Cutting Edge: Ensures clean, precise cuts and extends tool life.
High-Quality Carbide Construction: Provides exceptional hardness, wear resistance, and heat tolerance for demanding applications.
Vibration Reduction: Minimizes chatter for improved accuracy and surface quality.
Long Tool Life: Durable design and optimized geometry contribute to extended operational time.
Versatile Applications: Ideal for milling, slotting, profiling, and finishing operations in aluminum, brass, copper, and plastics.
Specifications

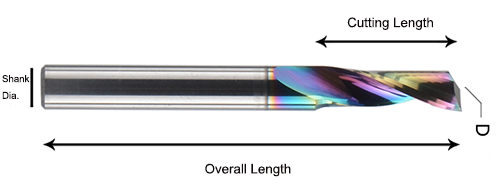

| D | Cutting Length | Overall Length | Shank Dia. |
| 1 | 3 | 38 | 3.175 |
| 1 | 4 | 38 | 3.175 |
| 1.5 | 4 | 38 | 3.175 |
| 1.5 | 6 | 38 | 3.175 |
| 1.5 | 8 | 38 | 3.175 |
| 2 | 4 | 38 | 3.175 |
| 2 | 6 | 38 | 3.175 |
| 2 | 8 | 38 | 3.175 |
| 2 | 10 | 38 | 3.175 |
| 2 | 12 | 38 | 3.175 |
| 2.5 | 4 | 38 | 3.175 |
| 2.5 | 6 | 38 | 3.175 |
| 2.5 | 8 | 38 | 3.175 |
| 2.5 | 10 | 38 | 3.175 |
| 2.5 | 12 | 38 | 3.175 |
| 2.5 | 15 | 38 | 3.175 |
| 3.175 | 6 | 38 | 3.175 |
| 3.175 | 8 | 38 | 3.175 |
| 3.175 | 10 | 38 | 3.175 |
| 3.175 | 12 | 38 | 3.175 |
| 3.175 | 15 | 38 | 3.175 |
| 3.175 | 17 | 38 | 3.175 |
| 3.175 | 22 | 45 | 3.175 |
| 3.175 | 25 | 50 | 3.175 |
| 3.175 | 28 | 50 | 3.175 |
| 3.175 | 32 | 55 | 3.175 |
| 3.175 | 42 | 70 | 3.175 |
| 3.175 | 52 | 80 | 3.175 |
| 4 | 12 | 50 | 4 |
| 4 | 15 | 50 | 4 |
| 4 | 17 | 50 | 4 |
| 4 | 22 | 50 | 4 |
| 4 | 25 | 50 | 4 |
| 4 | 32 | 55 | 4 |
| 4 | 42 | 70 | 4 |
| 4 | 52 | 80 | 4 |
| 5 | 17 | 50 | 5 |
| 5 | 22 | 50 | 5 |
| 5 | 25 | 50 | 5 |
| 5 | 32 | 60 | 5 |
| 5 | 42 | 70 | 5 |
| 5 | 52 | 80 | 5 |
| 6 | 12 | 50 | 6 |
| 6 | 15 | 50 | 6 |
| 6 | 17 | 50 | 6 |
| 6 | 22 | 50 | 6 |
| 6 | 25 | 50 | 6 |
| 6 | 28 | 60 | 6 |
| 6 | 32 | 60 | 6 |
| 6 | 42 | 70 | 6 |
| 6 | 52 | 80 | 6 |
| 8 | 17 | 60 | 8 |
| 8 | 22 | 60 | 8 |
| 8 | 25 | 60 | 8 |
| 8 | 28 | 65 | 8 |
| 8 | 32 | 75 | 8 |
| 8 | 35 | 75 | 8 |
| 8 | 42 | 90 | 8 |
| 8 | 52 | 100 | 8 |
| 10 | 22 | 60 | 10 |
| 10 | 25 | 60 | 10 |
| 10 | 28 | 60 | 10 |
| 10 | 32 | 75 | 10 |
| 10 | 42 | 90 | 10 |
| 10 | 52 | 100 | 10 |
| 12 | 22 | 60 | 12 |
| 12 | 25 | 60 | 12 |
| 12 | 28 | 75 | 12 |
| 12 | 32 | 75 | 12 |
| 12 | 42 | 90 | 12 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
