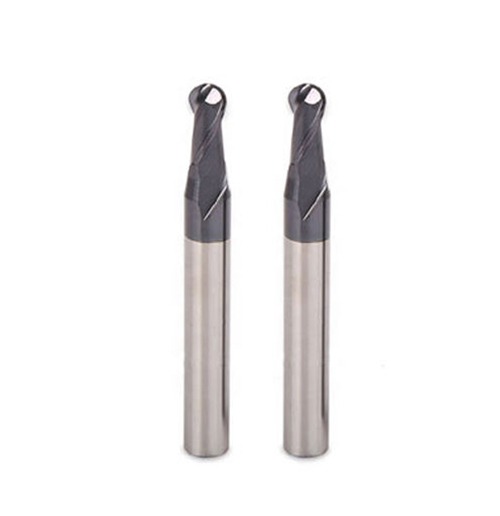

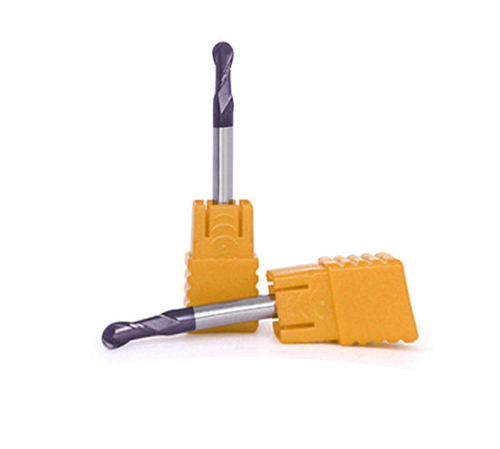

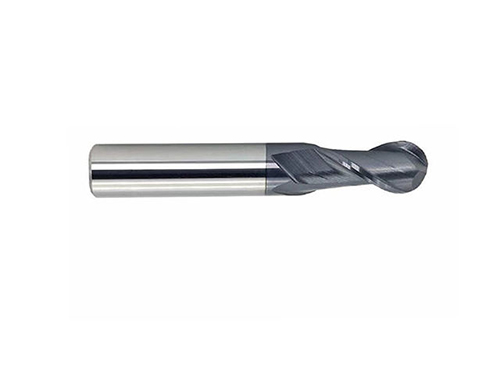

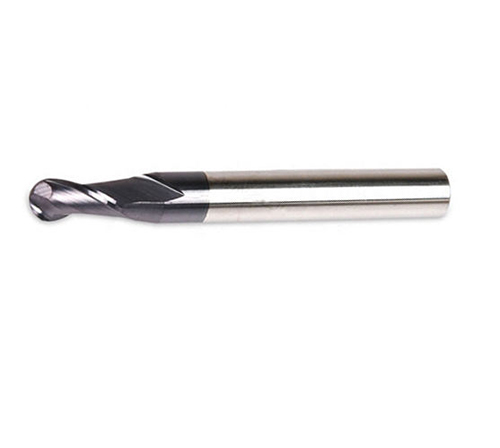

2 Flutes Carbide Ball Nose End Mill for Steel Milling Cutter
Products Function
Material: Tungsten Cobalt Alloy, Tungsten Carbide
Machine Type: Milling Machine
Precision: 0.005-0.01mm
Flute: 2-Flute Ball Nose end mill
Coating: TiSiN
HRC: HRC55
Suitable For: cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Products Features
1. High Hardness and High Wear Resistance: Adopts domestic high-quality ultra-fine grain tungsten carbide material, possessing excellent red hardness and wear resistance. Domestic raw materials offer a very high cost-performance ratio, helping you achieve cost reduction and efficiency improvement.
2. Two-Flute Design for Smooth Chip Evacuation: The two-flute structure helps improve chip removal efficiency, reduce cutting resistance, and enhance the machined surface finish, especially suitable for high-speed machining.
3. Ball Nose Structure with Wide Applicability: The ball nose design facilitates precision machining of complex three-dimensional contours such as cavities, curved surfaces, and grooves, resulting in smoother machining paths.
4. High-Precision Coating Process: The surface coating is uniform and fine, effectively reducing friction and chip adhesion during cutting, improving tool life and machining stability.
5. Strong Versatility and Easy Matching: Compatible with various CNC machine tools and machining centers, suitable for multiple industrial fields such as mold manufacturing and precision machining of mechanical parts.
Specifications
| Tool Num. | 1 Cutter Diameter | 2 Shank diameter | L2 Length of Cut | L1 Over All Length |
| R0.5*2*D4*50L-2F-55-steel | R0.5 | 4 | 2 | 50 |
| R0.75*3*D4*50L-2F-55-steel | R0.75 | 4 | 3 | 50 |
| R1*4*D4*50L-2F-55-steel | R1 | 4 | 4 | 50 |
| R1.5*6*D3*50L-2F-55-steel | R1.5 | 3 | 6 | 50 |
| R1.5*6*D4*50L-2F-55-steel | R1.5 | 4 | 6 | 50 |
| R2*8*D4*50L-2F-55-steel | R2 | 4 | 8 | 50 |
| R3*12*D6*50L-2F-55-steel | R3 | 6 | 12 | 50 |
| R4*16*D8*60L-2F-55-steel | R4 | 8 | 16 | 60 |
| R5*20*D10*75L-2F-55-steel | R5 | 10 | 20 | 75 |
| R6*24*D12*75L-2F-55-steel | R6 | 12 | 24 | 75 |
| R0.5*2*D4*75L-2F-55-steel | R0.5 | 4 | 2 | 75 |
| R0.5*2*D4*100L-2F-55-steel | R0.5 | 4 | 2 | 100 |
| R0.75*3*D4*75L-2F-55-steel | R0.75 | 4 | 3 | 75 |
| R0.75*3*D4*100L-2F-55-steel | R0.75 | 4 | 3 | 100 |
| R1*4*D4*75L-2F-55-steel | R1 | 4 | 4 | 75 |
| R1*4*D4*100L-2F-55-steel | R1 | 4 | 4 | 100 |
| R1.5*6*D3*75L-2F-55-steel | R1.5 | 3 | 6 | 75 |
| R1.5*6*D3*100L-2F-55-steel | R1.5 | 3 | 6 | 100 |
| R1.5*6*D4*75L-2F-55-steel | R1.5 | 4 | 6 | 75 |
| R1.5*6*D4*100L-2F-55-steel | R1.5 | 4 | 6 | 100 |
| R2*8*D4*75L-2F-55-steel | R2 | 4 | 8 | 75 |
| R2*8*D4*100L-2F-55-steel | R2 | 4 | 8 | 100 |
| R2.5*12*D6*75L-2F-55-steel | R2.5 | 6 | 12 | 75 |
| R2.5*12*D6*100L-2F-55-steel | R2.5 | 6 | 12 | 100 |
| R3*12*D6*75L-2F-55-steel | R3 | 6 | 12 | 75 |
| R3*12*D6*100L-2F-55-steel | R3 | 6 | 12 | 100 |
| R4*16*D8*75L-2F-55-steel | R4 | 8 | 16 | 75 |
| R4*16*D8*100L-2F-55-steel | R4 | 8 | 16 | 100 |
| R5*20*D10*100L-2F-55-steel | R5 | 10 | 20 | 100 |
| R6*24*D12*100L-2F-55-steel | R6 | 12 | 24 | 100 |
| R3*12*D6*150L-2F-55-steel | R3 | 6 | 12 | 150 |
| R4*16*D8*150L-2F-55-steel | R4 | 8 | 16 | 150 |
| R5*20*D10*150L-2F-55-steel | R5 | 10 | 20 | 150 |
| R6*24*D12*150L-2F-55-steel | R6 | 12 | 24 | 150 |
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
